/ MODULE-01 / INDUSTRIAL REUSE SERIES CAPACITY: 50—5000+ m³/Day

Skid-Mounted
Water Reuse & ZLD
Plants.

Turn your industrial effluent into high-grade process water. Slash your municipal water bills and zero out discharge fees with our skid-mounted UF+RO integration.

Water Recovery
>75%
Up to 85% Config.
Product Quality
< 50 ppm
Boiler/Cooling Feed
Typical ROI
< 2 yrs
Based on local tariffs
DOWNLOAD DATASHEET (.PDF) → Speak to Engineer

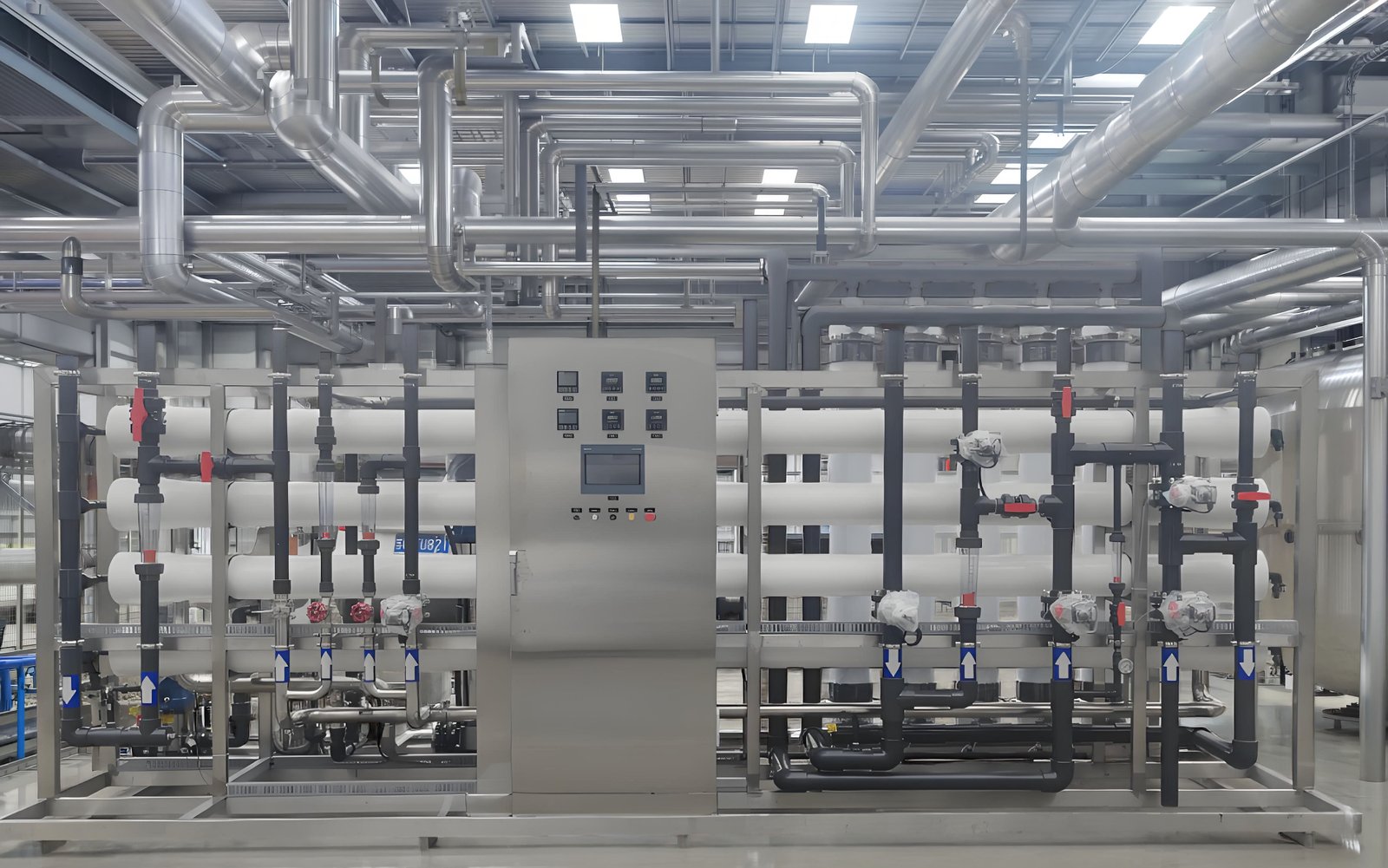

Industrial Water Reuse ZLD RO Skid by WANDONG ENVIRO
Macro shot: Integrated UF+RO Skid
with High-Fouling Resistant Pipework
// ZLD UPGRADEABLE
Ready

// Deployment Paradigm

Stop Paying Twice for Water.
Start the Circular Water Economy.

Traditional Linear Water Use (Once-Through)
  • × Bleeding cash by paying high municipal incoming water tariffs.
  • × Bleeding cash AGAIN by paying stringent wastewater discharge fees.
  • × Factory production is highly vulnerable to regional drought and water scarcity.
  • × Non-compliant with modern ESG and ISO 14001 corporate mandates.
WANDONG Water Reuse Solutions
  • ✓ Recover Up to 85%: Dramatically slash incoming water bills and discharge fees.
  • ✓ Drought-Proof Operations: Secure your own independent process water supply.
  • ✓ Superior Quality: Recovered RO water is often purer than local municipal tap water.
  • ✓ Rapid ROI: Most systems pay for themselves within 1.5 to 3 years.
/ MODULE-03 / COMPONENT DNA

Tier-1 Components.
Zero Compromise.

Treating wastewater requires the toughest membranes on earth. We build exclusively with fouling-resistant OEM components designed for extreme COD environments.

01 / UF PRE-TREATMENT
SUEZ®
/ TORAY®

Absolute physical barrier securing downstream RO membranes from TSS and biological spikes.

CLEANING: AUTO CEB WASH
WARRANTY: 3 YEARS
02 / FOULING-RESISTANT RO
DOW Fortilife™

Specialized wide-spacer polyamide membranes designed explicitly for wastewater reuse.

TOLERANCE: HIGH ORGANICS
DURABILITY: EXTREME
03 / HIGH-PRESSURE PUMP
GRUNDFOS®

CR / CRN multi-stage vertical centrifugal pumps. Configurable with VFD for varying flow loads.

MATERIAL: SS304 / SS316L
MOTOR: IE3 PREMIUM
REMOTE SCADA
04 / CONTROL & PLC
SIEMENS®

S7-1200 PLC + 7" HMI Touchscreen. Unattended continuous operation with IoT remote SCADA.

PROTOCOL: MODBUS TCP/IP
I/O: REMOTE READY
/ MODULE-03B / ENGINEERING CRAFTSMANSHIP

The Anatomy of Reliability.

Precision engineering down to the last weld. No shortcuts.

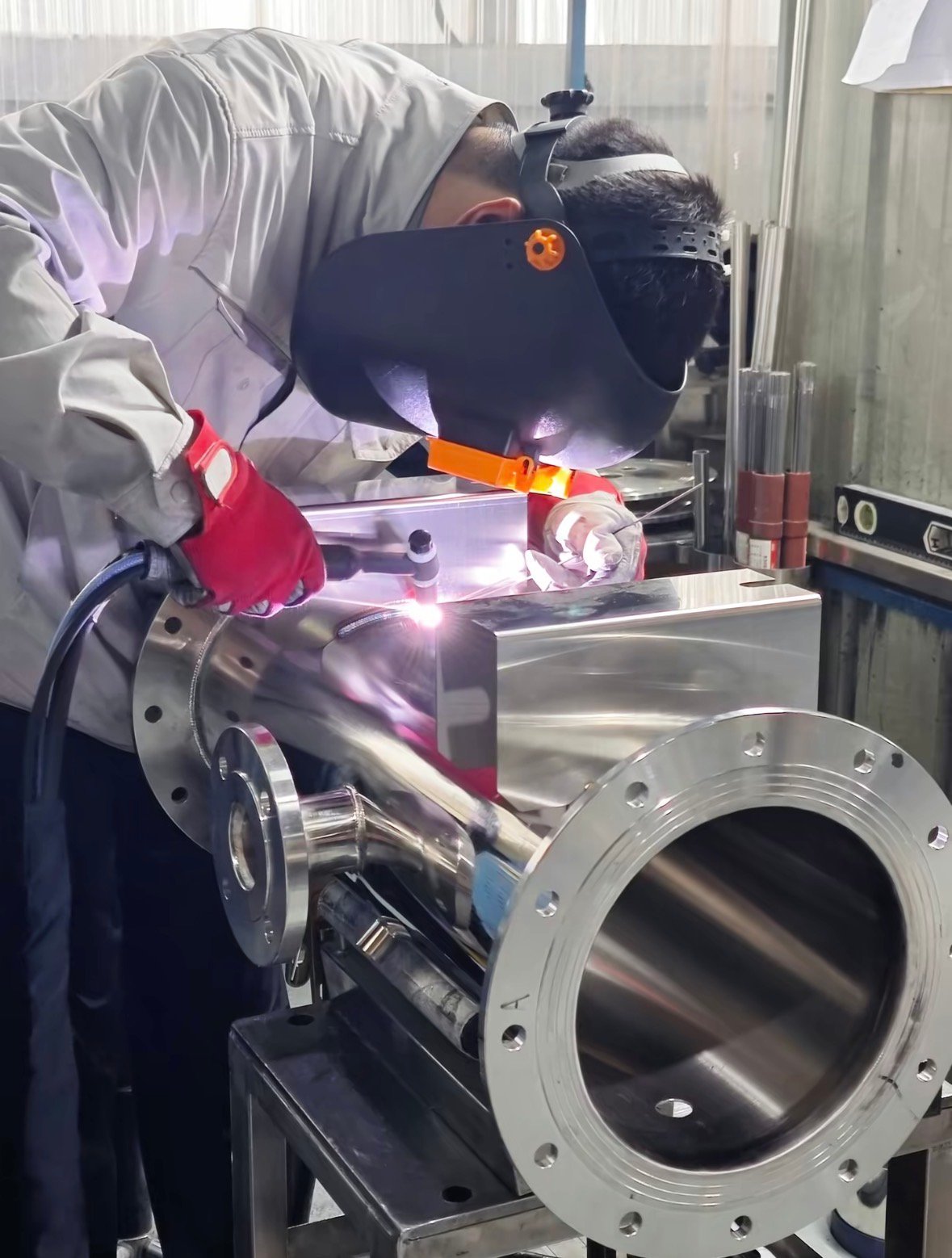

Argon Arc TIG Welding SS304 Manifold by WANDONG ENVIRO
01 / WELDING
Argon Arc TIG Welding
Flawless SS304/316L penetration to ensure zero-leakage in high-pressure RO manifolds.

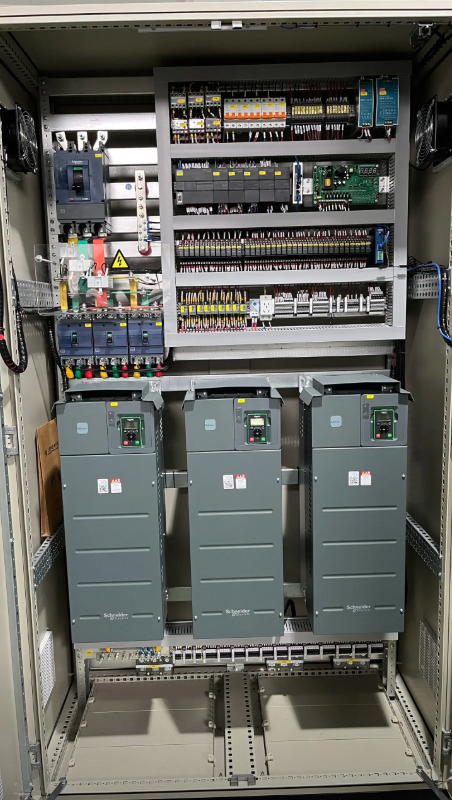

Siemens PLC Control Panel Water Reuse by WANDONG ENVIRO
02 / ELECTRICAL
Siemens PLC Wiring
Industrial-grade terminal blocks with clear schematic labeling for easy maintenance.

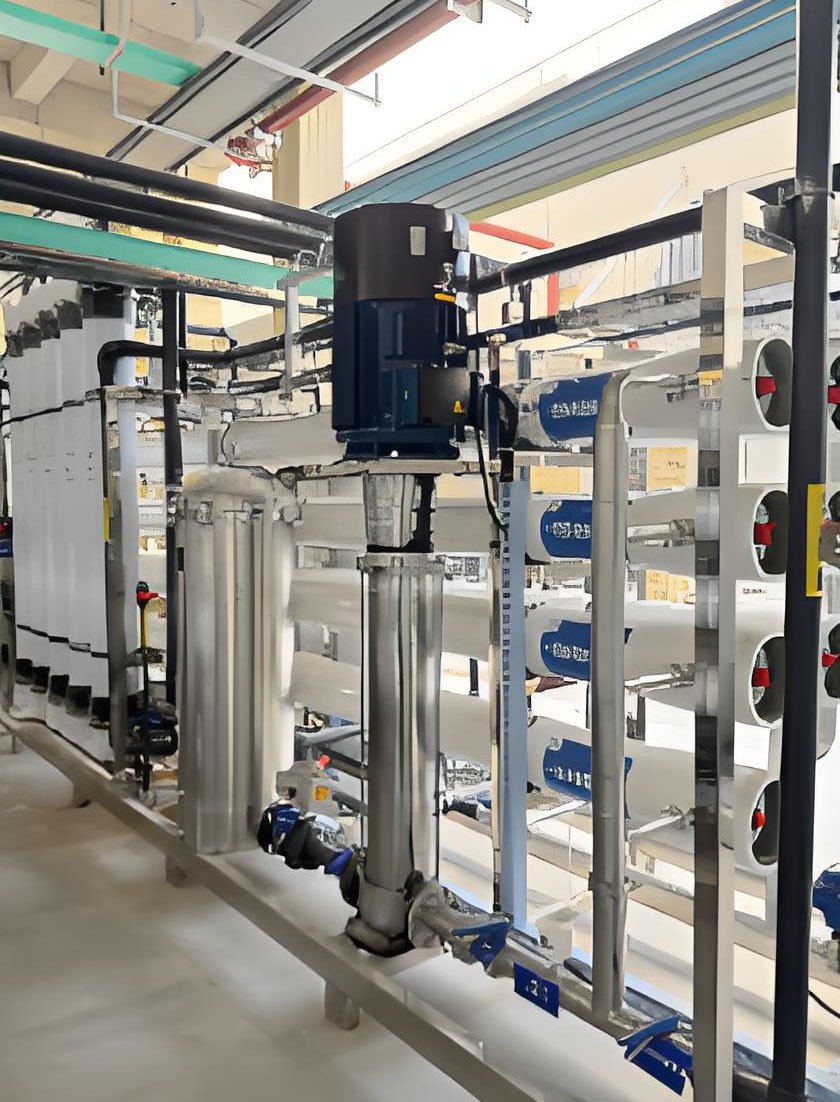

High Pressure Manifold Integration RO by WANDONG ENVIRO
03 / HYDRAULICS
HP Manifold Integration
Vibration-dampened high-pressure piping tested to 25 bar (standard) or 120 bar (DTRO).
Skid Frame
04 / SKID FRAME
Heavy-Duty SS304
Fully enclosed or open-frame stainless steel skids designed to prevent transit damage.
/ MODULE-03E / COMPONENT ANATOMY

Transparent Quality.
Inside the Hardware.

We don't hide behind metal enclosures. Explore the internal engineering of our core components that guarantee continuous operation in high-fouling environments.

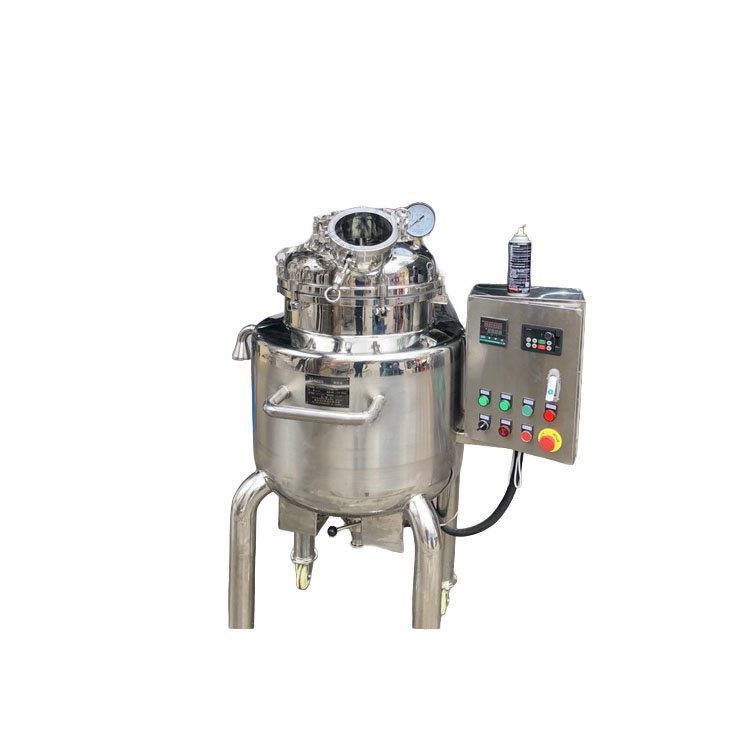

Fenton AOP Reactor High COD Wastewater by WANDONG ENVIRO
01 / AOP PRE-TREAT

Fenton Reactor

Generates powerful hydroxyl radicals (·OH) to break down refractory organics (high COD) before biological treatment.

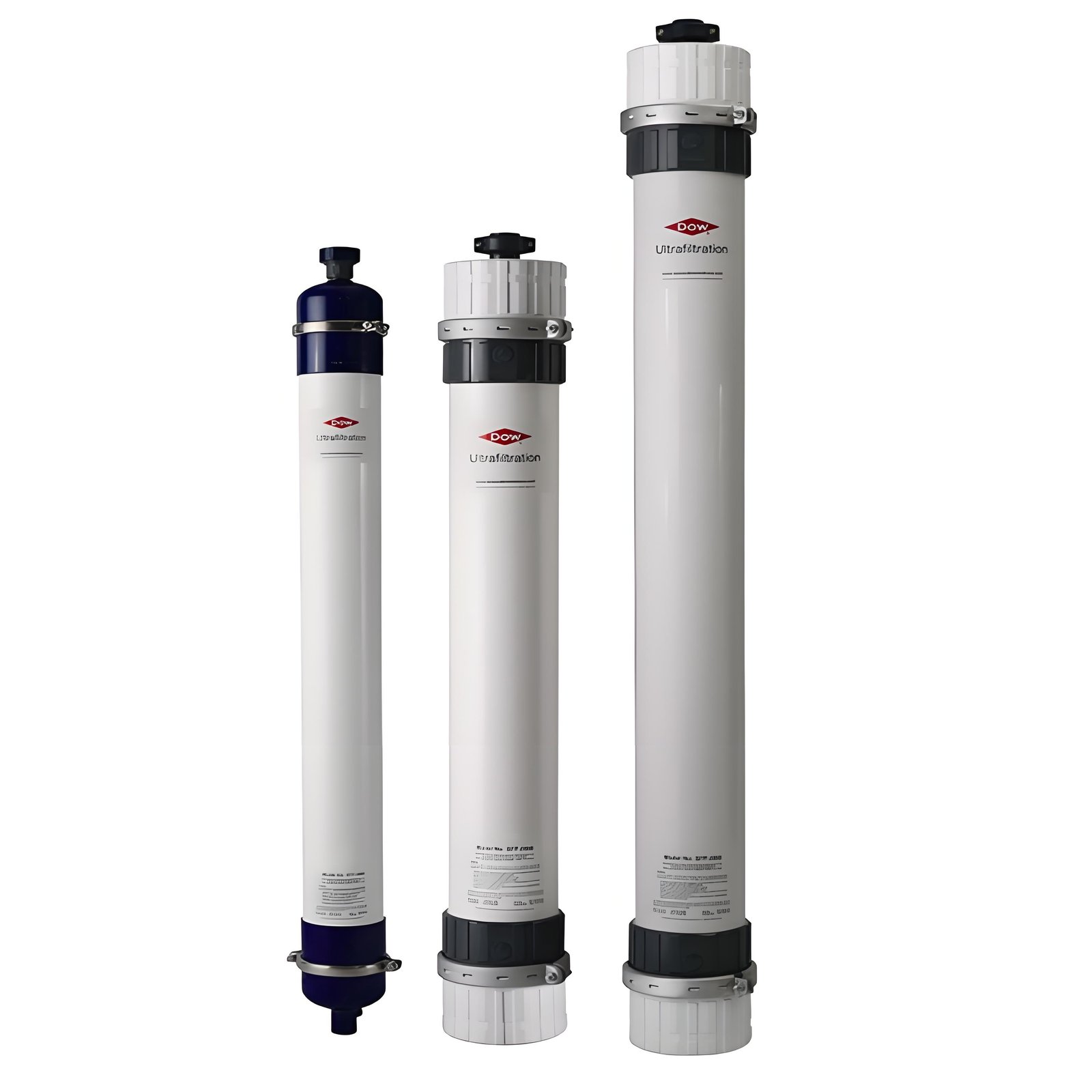

DOW Ultrafiltration UF Membrane Modules by WANDONG ENVIRO
02 / RO PROTECTION

UF Membrane

High-tensile PVDF hollow fibers act as an absolute physical barrier, ensuring feed SDI < 3 for the RO stage.

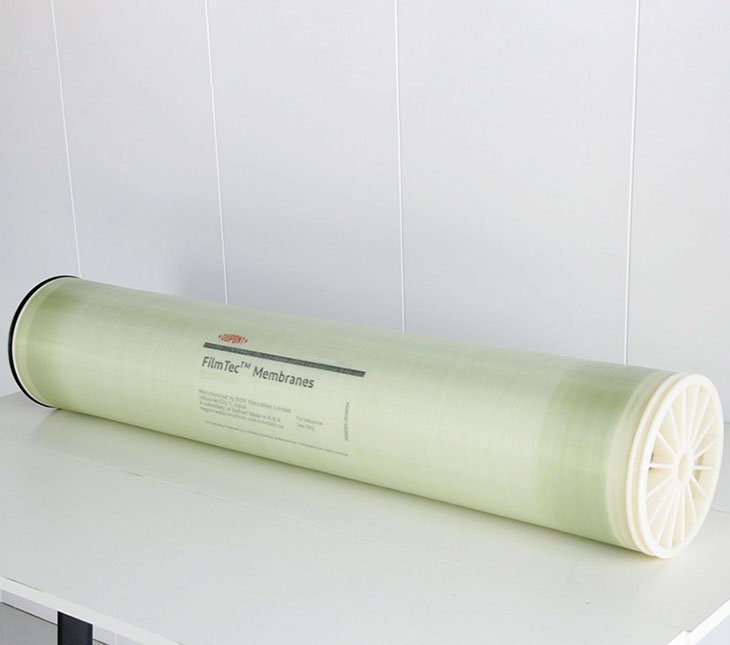

DOW FilmTec Fouling Resistant RO Membrane by WANDONG ENVIRO
03 / CORE SEPARATION

FR-RO Element

Fouling-Resistant (FR) polyamide membrane with 34mil wide feed spacers, designed specifically to resist organic bio-fouling.

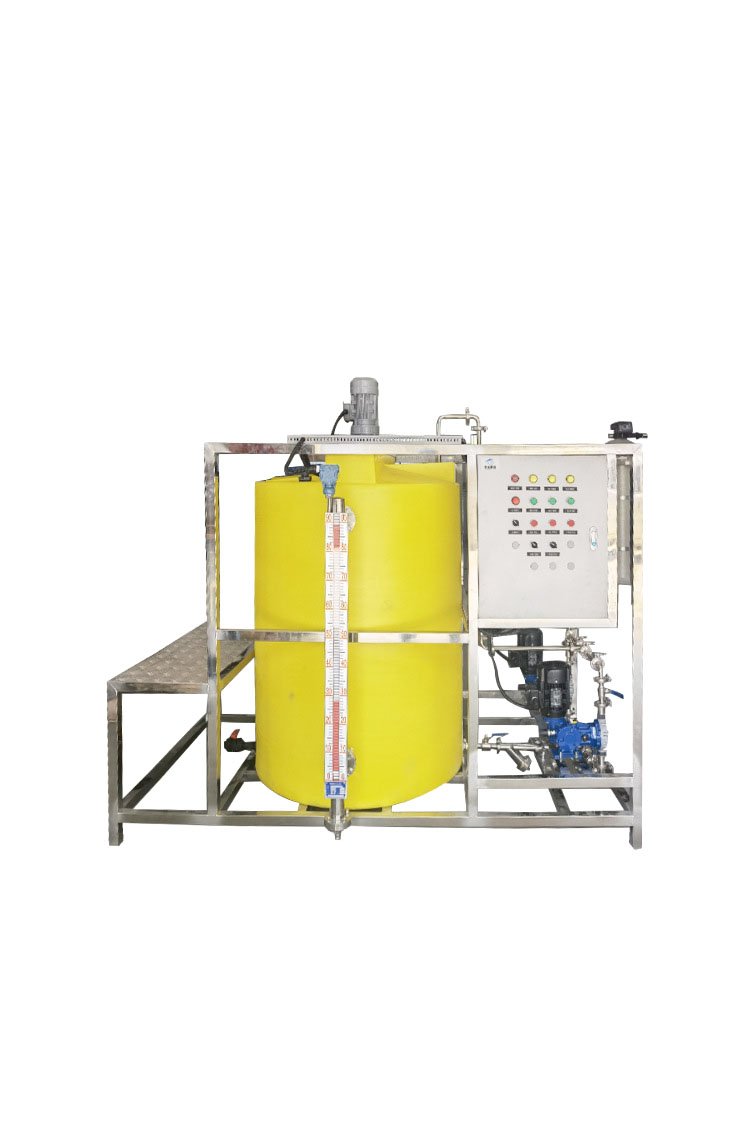

CEB Chemical Dosing Skid System by WANDONG ENVIRO
04 / MAINTENANCE

CEB Dosing Skid

Automated injection of chemicals for Chemically Enhanced Backwash (CEB), keeping membranes clean without manual labor.

/ MODULE-03D / SKID ARCHITECTURE

Modular Engineering.
Zero Civil Work Required.

We eliminate the unpredictability of overseas construction. Every water reuse plant is fully modeled in 3D, pre-assembled, and hydro-tested at our facility before shipping.

01

3D CAD Modeling

Advanced 3D piping design ensures zero spatial clashes and optimizes the footprint for tight factory layouts.

02

High-Density Integration

Pumps, membranes, and dosing systems are compactly integrated onto a single SS304/SS316L heavy-duty skid.

03

Plug & Play Deployment

Simply connect the raw water inlet, permeate outlet, and power supply. No concrete pools or complex on-site welding.

3D CAD Layout for Industrial Water Reuse System by WANDONG ENVIRO
/ MODULE-03C / INTELLIGENT O&M & SAFETY

Cloud-Based IoT SCADA.
Unattended Operation.

Monitor and manage your reuse plant from anywhere in the world. Our proprietary YunPLC cloud system ensures zero downtime for critical industrial operations.

Smart Cloud Monitoring APP

Independently developed YunPLC IoT APP system via 4G/WiFi. Detects real-time data and pushes SMS/WeChat alarms for abnormal conditions, realizing true unmanned management without fixed IPs.

01. Real-Time TMP Tracking LIVE GRAPH
02. Flow & Conductivity CONTINUOUS
03. Remote Valve Control APP ENABLED
04. Fault Alarm Push SMS / APP NOTIFY
05. Historical Data Log CLOUD STORAGE
CDO: INSERT APP DASHBOARD IMAGE

Showcasing real-time pressure, conductivity, and flow rate monitoring via iOS/Android interface.

Engineered for rapid deployment with three standardized, zero-concrete form factors:

  • CONTAINERIZED (ISO HIGH-CUBE): 100% above-ground and fully relocatable. Eliminates the nightmare of digging expensive concrete pools at remote camps.

  • SKID-MOUNTED (OPEN-FRAME): High-density electromechanical integration. Drops directly into tight factory floor plans to maximize space.

  • UNDERGROUND PACKAGED: The invisible footprint for Eco-Resorts and Premium Commercial Estates. Buried discreetly with absolute zero odor.

/ MODULE-04A / LIMITS

Inlet Boundary
Conditions.

Feed water to the Reuse Skid MUST be Secondary Effluent (post-biological treatment). Pumping raw, untreated sewage directly into membranes will result in immediate and catastrophic failure.

⚠ ENGINEERING NOTICE
If your factory effluent has COD > 100 mg/L (up to 4000 mg/L), an upstream Fenton Advanced Oxidation Process (AOP) and biological plant is strictly required before entering this Reuse Skid.
SECONDARY EFFLUENT PARAMETER MAX LIMIT FOR REUSE SKID
Chemical Oxygen Demand (COD) < 100 mg/L
Biological Oxygen Demand (BOD₅) < 20 mg/L
Total Suspended Solids (TSS) < 30 mg/L
Fats, Oils, and Grease (FOG) < 2 mg/L
/ MODULE-04B / COMMITMENT

Target Permeate
Performance Guarantee.

When inlet secondary effluent conditions are met, WANDONG ENVIRO contractually guarantees the following high-grade process water quality standards.

✔ PROCESS & BOILER SAFE
Effluent strictly complies with industrial cooling tower make-up and low-pressure boiler feed requirements.
OUTPUT METRIC GUARANTEED VALUE
Product TDS ≤ 50 mg/L
Product Turbidity < 0.1 NTU
Color / Odor 100% Removed
System Recovery Rate 75% - 85%
root@wandong-engineering-server:~# cat water_reuse_architecture.log
> INITIATING SYSTEM OVERVIEW: WANDONG ENVIRO represents the pinnacle of skid-mounted industrial water reuse integration. By treating secondary biological effluent with advanced dual-membrane (UF+RO) technology, our plug and play reuse skids recover up to 85% of plant wastewater, transforming it into highly profitable process water.
> PROCESS ANALYSIS: The heavy-duty reuse process architectures are built exclusively utilizing Tier-1 fouling-resistant membranes (DOW Fortilife). Whether the application requires cooling tower make-up for a textile dyeing plant, boiler feedwater for food & beverage manufacturing, or acting as the primary concentrator for a Zero Liquid Discharge (ZLD) facility, the design philosophy guarantees maximum uptime.
> ENGINEERING PROTOCOL: All turnkey reuse solutions undergo rigorous FAT testing. The Siemens PLC fully automates UF Chemically Enhanced Backwash (CEB) and RO flushing cycles to actively combat organic and biological fouling. The result is a guaranteed longest membrane lifespan and the lowest Total Cost of Ownership (TCO).
> SYSTEM STATUS: REUSE RECOVERY OPERATIONAL
/ MODULE-05 / SPECIFICATION MATRIX

Fouling-Resistant Membrane
Cross-Manufacturer Matrix.

SCROLL HORIZONTALLY →
DATA SOURCE: OEM TECHNICAL BULLETINS
// CATEGORY Reuse Membrane Class M1 DOW FilmTec™ USA M2 Hydranautics / Nitto JAPAN M3 Toray JAPAN
Fouling-Resistant (FR) High-Organics / General Reuse STANDARD
MODEL: FORTILIFE CR-100
Active Area: 400 ft²
Permeate Flow: 11,500 GPD
Rejection: 99.7%
Feed Spacer: 34 mil
MODEL: LFC3-LD
Active Area: 400 ft²
Permeate Flow: 11,000 GPD
Rejection: 99.7%
Feed Spacer: 34 mil
MODEL: TMG20D-400
Active Area: 400 ft²
Permeate Flow: 10,500 GPD
Rejection: 99.7%
Feed Spacer: 34 mil
Ultra-Fouling-Resistant ZLD Prep / High-COD RUGGED
MODEL: BW30XFR-400/34
Active Area: 400 ft²
Permeate Flow: 10,500 GPD
Rejection: 99.65%
Advantage: Extreme Bio-Tolerance
MODEL: CPA5-LD
Active Area: 400 ft²
Permeate Flow: 11,000 GPD
Rejection: 99.7%
Advantage: Positive Charge Shift
MODEL: TML20D-400
Active Area: 400 ft²
Permeate Flow: 10,500 GPD
Rejection: 99.75%
Advantage: Chemical Durability
Disc Tube RO (DTRO) Leachate / Extreme Brine EXTREME
N/A
DOW does not manufacture DTRO modules.
MODEL: ROCHEM / Rochem DTRO
Design: Open Channel
Max Pressure: Up to 120 bar
Tolerance: COD > 10,000 ppm
Advantage: Unblockable
MODEL: Pall / PALL DTRO
Design: Open Channel
Max Pressure: Up to 120 bar
Tolerance: Extreme Scaling
Advantage: Extreme Brine Conc.
// Exact membrane selection strictly depends on full influent water analysis and organic fouling indices. REV: 2026.01
/ MODULE-06 / LIFECYCLE

Membrane Attenuation
Performance Decay Modeling in Wastewater.

TABLE-6.1
Water Flux Attenuation (Reuse Application)
PER ASTM D4194
SECONDARY EFFLUENT SOURCE UF PRE-TREATMENT DESIGN FLUX RO DECAY %/YR
Municipal Wastewater Mandatory (SDI<3) 12-14 LMH ~7%
Textile / Dyeing Effluent Mandatory + DAF 10-12 LMH ~10%
Food & Beverage Effluent MBR Equivalent 10-14 LMH ~8%
Electroplating (Heavy Metals) UF Required 8-10 LMH ~12%
// Design flux in wastewater reuse is deliberately kept 30-50% lower than standard tap water RO to prevent irreversible organic and bio-fouling.
TABLE-6.2
Chemical Cleaning (CIP) Frequency Model
OPERATIONAL OPEX
MEMBRANE TYPE PRIMARY FOULANT EST. CIP FREQUENCY
Standard BWRO (Improper Use) Severe Biofouling Every 2-4 Weeks
Fouling-Resistant (FR) RO Organics / Colloids Every 2-3 Months
Disc Tube RO (DTRO) Heavy Scaling / Organics Every 3-6 Months
// Utilizing standard BWRO membranes for wastewater reuse guarantees catastrophic OPEX blowouts due to excessive CIP downtime.
/ MODULE-07 / P&ID

Process Flow
Standard Reuse vs ZLD Preparation.

TOPOLOGY: DOUBLE BARRIER (UF + FR-RO) · SYSTEM RECOVERY: 65 - 80% · PRIMARY GOAL: OPEX REDUCTION
STEP-01
Sec. Effluent
From Biol. Plant
STEP-02
UF Pre-treatment
SDI<3 Guarantee
STEP-03 ◆
HP Pump + FR-RO
Fouling Resistant
STEP-04
Brine Discharge
To Sewer/Evap
STEP-05 ★
Pure Reuse Water
Factory Process
FEED TDS
1500 - 3000 ppm
PRODUCT TDS
< 50 ppm
BRINE VOLUME
20 - 35%
MEMBRANE FOULING RATE
Controlled

How the Industrial Water Reuse Process Works (Engineering Details)

Step 1: Fenton Advanced Oxidation (For High COD). For complex industrial effluents with COD up to 4000 mg/L, the process begins with a Fenton Oxidation reactor. By utilizing Fe2+ as a catalyst and H2O2, powerful hydroxyl radicals (·OH) are generated. This advanced oxidation process (AOP) breaks down refractory organics into biodegradable micro-molecules, preparing the water for biological treatment.

Step 2: Biological Effluent & UF Pre-treatment. The wastewater is biologically treated (via MBR or AO) and pumped through an Ultrafiltration (UF) skid. This crucial industrial water reuse pre-treatment stage reduces the Silt Density Index (SDI < 3) and guarantees zero suspended solids, acting as an absolute physical barrier to protect downstream membranes.

Step 3: Fouling-Resistant RO (FR-RO) Separation. Powered by premium Grundfos vertical centrifugal pumps, the filtered wastewater is forced through fouling-resistant reverse osmosis membranes (such as DOW Fortilife™). These specialized wide-spacer elements tolerate much higher organic and biological loads than standard brackish water membranes. The system recovers 65-80% of the water as high-purity permeate, leaving behind a concentrated brine.

Step 4: ZLD Pre-Concentration (Optional DTRO). For clients pursuing Zero Liquid Discharge (ZLD) or facing extreme discharge penalties, the RO brine is sent to a Disc Tube RO (DTRO) system. Operating at extreme pressures (up to 120 bar), the DTRO further concentrates the brine, recovering additional pure water and reducing the final waste volume to merely 5-10%.

Step 5: Thermal Evaporation & Pure Water Delivery. The highly purified permeate from both the RO and DTRO stages is routed back to the factory for use in cooling towers or low-pressure boilers, slashing municipal water bills. The tiny remaining volume of extreme brine is sent to a thermal evaporator (MVR/MED) for final crystallization, successfully achieving a turnkey Zero Liquid Discharge (ZLD) wastewater solution.

/ FIELD DEPLOYMENT / APPLICATION

Proven In The Most
Unforgiving Environments.

Turnkey reuse skids recovering millions of gallons of water for heavy industries, rapidly returning investment capital.

Textile and Dyeing Wastewater Reuse Plant

Textile & Dyeing Mills

Treating highly colored, high-COD effluent. Recovering 70% of hot process water to dramatically slash both water tariffs and boiler heating energy costs.

Food and Beverage Production Water Reuse System

Food & Beverage Production

Upgrading biological effluent to boiler-feed quality using UF+RO dual membranes. Ensuring uninterrupted production during regional municipal water shortages.

Electroplating Zero Liquid Discharge DTRO System

Electroplating & Chemical ZLD

Integrating DTRO to concentrate heavy-metal brine. Reducing final liquid waste volume to 5% to make thermal evaporation (ZLD) economically viable.

/ MODULE-09 / SCOPE OF SUPPLY

Scope & Dimensions
Shipping Matrix.

// STANDARD INCLUSIONS
Battery Limits — Included
  • ✓SS316L Skid Frame · Epoxy Coated
  • ✓Grundfos HP Pumps · CRN-Series
  • ✓Fouling-Resistant RO Membranes · DOW / Toray
  • ✓UF Pre-treatment Skid · Integrated
  • ✓Siemens PLC + 7" HMI
  • ✓FRP Pressure Vessels · CodeLine
  • ✓Online Conductivity / pH / ORP Meters
  • ✓Automated CIP & Auto-Flush Manifolds
  • ✓Pre-Shipment FAT Testing Report
// OPTIONAL UPGRADES
À la Carte — Quote on Demand
  • +Fenton AOP Reactor · For COD < 4000mg/L
  • +DTRO Brine Concentration Skid · For ZLD
  • +DAF (Dissolved Air Flotation) · For High FOG
  • +Chemical Dosing Station · ProMinent
  • +VFD (Variable Frequency Drive) · ABB / Siemens
  • +Remote SCADA + IoT Dashboard
  • +Containerized Plug-and-Play Build
  • +UV-C Sterilizer · 254 nm
  • +3rd-Party Inspection (BV / SGS / Lloyd's)
LEAD TIME
45-60 days
INCOTERMS
FOB / CIF / EXW
FAT
Pre-shipment Test ✓
DOC PACK
.DWG / .PDF / .STEP
TABLE-9.1
Shipping & Footprint Matrix (UF+RO Integrated)
DIMENSIONS IN MM · WEIGHTS IN KG
MODEL CAPACITY (M³/DAY) INSTALLED POWER L × W × H (MM) DRY WEIGHT CONTAINER
WD-REUSE-50 50.0 7.5 kW 4500×1800×2100 2,500 kg 20'GP
WD-REUSE-100 100.0 15.0 kW 6000×2000×2400 4,000 kg 40'HQ
WD-REUSE-250 250.0 30.0 kW 9000×2200×2400 7,500 kg 40'HQ
WD-REUSE-500 500.0 55.0 kW 12000×2400×2600 12,000 kg 2×40'HQ
WD-REUSE-1000 1000.0 110.0 kW Modular Skids 22,000 kg 3×40'HQ
WD-REUSE-2500 2500.0 280.0 kW Modular Skids 55,000 kg Bulk Skid
WD-REUSE-5000 5000.0 550.0 kW Custom EPC 110,000 kg Custom EPC
WD-REUSE-MAX >5000.0 Project Spec Custom EPC Custom EPC OOG / FR
/ MODULE-11 / EPC CHECK

Documentation & Compliance.
Built for EPC Integration.

// EPC RESOURCE PACK

Complete Engineering Bundle

All technical drawings, datasheets, and integration files required for EPC contractors, system integrators and design houses.

.DWG P&ID
.PDF DATASHEET
.STEP 3D MODEL
.XLSX BOM
.DWG LAYOUT
.PDF O&M MANUAL
🔒 DOWNLOAD EPC PACK (.ZIP) 84 MB · SUBMIT DETAILS TO UNLOCK
// COMPLIANCE STANDARDS

Certified & Auditable

ISO 9001:2015Quality Management
✓ ACTIVE
ISO 14001Environmental Mgmt
✓ ACTIVE
ASME B31.3Process Piping
✓ ACTIVE
CE / PED 2014/68/EUEU Directive
✓ ACTIVE
/ MODULE-12 / GLOBAL EMPOWERMENT

Risk-Free Overseas Deployment.
Foolproof Remote Commissioning.

Buying heavy machinery across borders shouldn't be a gamble. We replace expensive overseas dispatch fees with rigorous factory prep, color-coded assembly, and 1-on-1 video engineering support.

Color-Coded Assembly

Zero guesswork. All systems arrive with English 3D P&IDs, color-coded piping, and clearly labeled flanges. Your local mechanical contractors simply connect the dots.

Live FAT Verification

We eliminate startup risks at the factory. You witness your system undergo rigorous hydrostatic and performance testing via live stream before it ever boards a ship.

1-on-1 Video Support

Direct access to the English-speaking process engineers who built your plant. Live video troubleshooting ensures your local team never faces downtime alone.

// LIFETIME SUPPORT

Genuine Spares.
72-Hour Global Dispatch.

Protect your investment. We stock 100% original hardware consumables. Air-freight friendly via DHL/FedEx to prevent catastrophic downtimes.

01
FR-RO MEMBRANES
DOW / Toray
02
UF MODULES
Suez / Toray
03
DOSING PUMPS
Solenoid / Motor
04
WATER SENSORS
TDS / pH / ORP
/ MODULE-13C / TECHNICAL FAQ

Hardcore FAQ.
Engineering-Grade Answers.

Standard UF+RO recovers 70-85% due to osmotic pressure limits. To achieve 100% (Zero Liquid Discharge), a DTRO and Thermal Evaporator must be added to treat the final brine.
Absolutely not. Shipping heavy, hazardous chemical liquids overseas is a massive waste of your budget due to extreme freight and customs costs. Instead, we provide the exact chemical formulas, concentrations, and dosing pump settings. You purchase these standard chemicals locally, saving thousands of dollars.
This is why UF pre-treatment is absolutely necessary (to guarantee SDI < 3). Furthermore, we use specialized Fouling-Resistant (FR) RO membranes with wider feed spacers (34mil) designed explicitly for high-organics.
Absolutely NOT. Raw sewage must first pass through a biological treatment plant (like MBR or AO) to reduce BOD/COD to acceptable levels before it can enter a membrane reuse system.
The RO permeate has TDS < 50ppm, making it superior to tap water. It is perfect for cooling tower make-up, boiler feedwater, washing lines, and general process water.
Yes. While our systems are plug-and-play and support remote video commissioning, we can dispatch our senior process engineers globally to supervise installation and train your local operators.

Didn't find the answer you're looking for?

Speak to an Engineer
// Module-14 / Initiate Protocol

YOUR 50,000m²
ENGINEERING BACKEND.

"You focus on scaling your operations; let us handle the heavy-duty water infrastructure. Submit your parameters below, and our engineering team will architect a custom, zero-civil-work solution guaranteed to perform anywhere on earth."

Kane

Director of Global Projects

Priority Direct Line (Online)
Chat on WhatsApp
Send Direct Email
Connect on LinkedIn

Submit Site Specs

256-Bit Secure

DROP FILE OR CLICK

.PDF / .XLSX / .CSV (Max 10MB)

"Submit your raw water analysis report today. Our senior engineering team will provide a precise P&ID turnkey solution and factory-direct CapEx budget within 48 hours."

```
