/ MODULE-01 / PACKAGED WASTEWATER CAPACITY: 10—1000+ m³/Day

Packaged
MBR Bioreactor
Sewage Plants.

Engineered for remote mining camps, island resorts, and field hospitals. Ultra-compact, odorless, and delivering pathogen-free reusable water with Zero Civil Work.

Effluent BOD/TSS
< 10 mg/L
Ready for Irrigation
Footprint Savings
Up to 50%
Vs Traditional Plants
Lifespan
15 yrs
Mech. / 3-5y Membrane
DOWNLOAD DATASHEET (.PDF) → Speak to Engineer

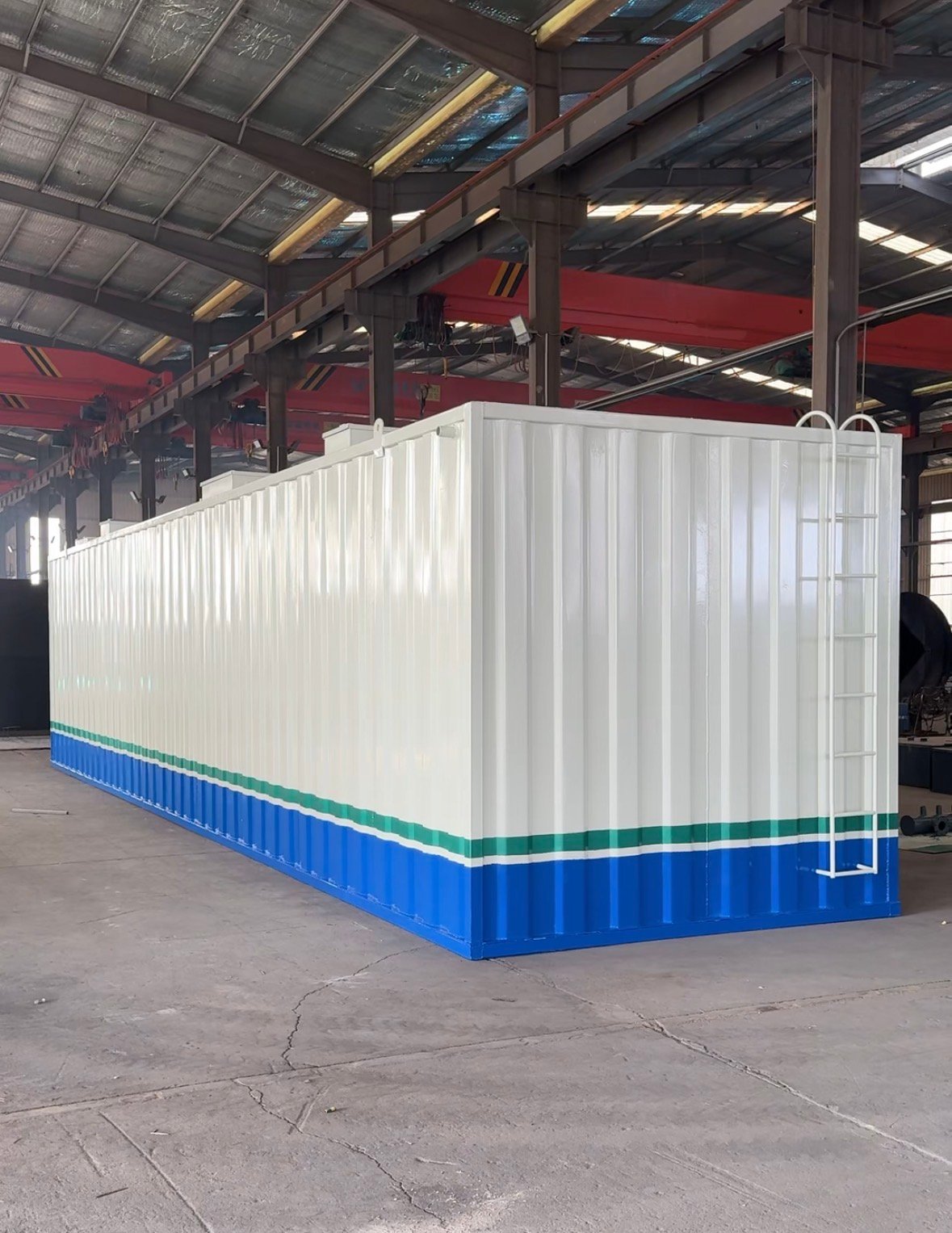

WANDONG ENVIRO Containerized MBR Sewage Treatment Plant
// PORE SIZE RATING
0.1 - 0.4 µm

// Deployment Paradigm

Stop Digging Huge Concrete Pools.
Deploy Packaged Sewage Treatment.

Traditional Activated Sludge (CAS)
  • × Requires massive land footprint for huge settling clarifiers.
  • × Open concrete tanks generate severe odor and insect problems.
  • × Cannot guarantee 100% bacteria removal for safe irrigation.
  • × Messy on-site civil works causing endless project delays.
WANDONG Packaged MBR™
  • ✓ 50% Space Saving: Membranes replace clarifiers. Ultra-compact footprint.
  • ✓ Odorless & Sealed: Fully enclosed containers or underground packaged boxes.
  • ✓ Crystal Clear Effluent: Physical barrier blocks all solids. Ready for reuse.
  • ✓ Zero Civil Work: Pre-plumbed and pre-wired. Drop, connect, and process.
/ MODULE-03 / COMPONENT DNA

Tier-1 Components.
Zero Compromise.

Every WANDONG MBR platform is built exclusively from globally recognized Tier-1 OEM components. Designed for harsh, high-MLSS environments.

01 / MBR MEMBRANE
KUBOTA®
/ SUEZ®

Industry-benchmark flat sheet or hollow fiber immersed MBR cassettes. Unmatched anti-fouling.

TOLERANCE: HIGH MLSS
WARRANTY: 3 YEARS
02 / AERATION BLOWERS
AERZEN®

Heavy-duty roots or rotary lobe blowers for biological aeration and continuous membrane scouring.

ENCLOSURE: LOW NOISE
MOTOR: IE3 PREMIUM
03 / CONTROL & PLC
SIEMENS®

S7-1200 PLC + 7" HMI Touchscreen. Fully automates sludge recirculation, aeration timing, and CIP.

PROTOCOL: MODBUS TCP/IP
SCADA: REMOTE I/O
100% LEAK TESTED
04 / TANK & COATING
EPOXY /
FRP

Heavy-duty carbon steel with multi-layer epoxy anti-rust coating, or FRP for underground burial.

LIFESPAN: 15+ YEARS
LINING: ANTI-CORROSION
CAPEX OPTIMIZATION FLEXIBILITY
While we standardize on European/US Tier-1 components for maximum reliability, we offer Budget-Optimized Configurations utilizing rigorously tested Asian premium alternatives (e.g., Scinor/Jiarong membranes, Goorui blowers). We adapt to your project's CapEx limits without compromising the core biological performance guarantee.
/ MODULE-03B / ENGINEERING CRAFTSMANSHIP

The Anatomy of Reliability.

Precision engineering down to the last weld. No shortcuts.

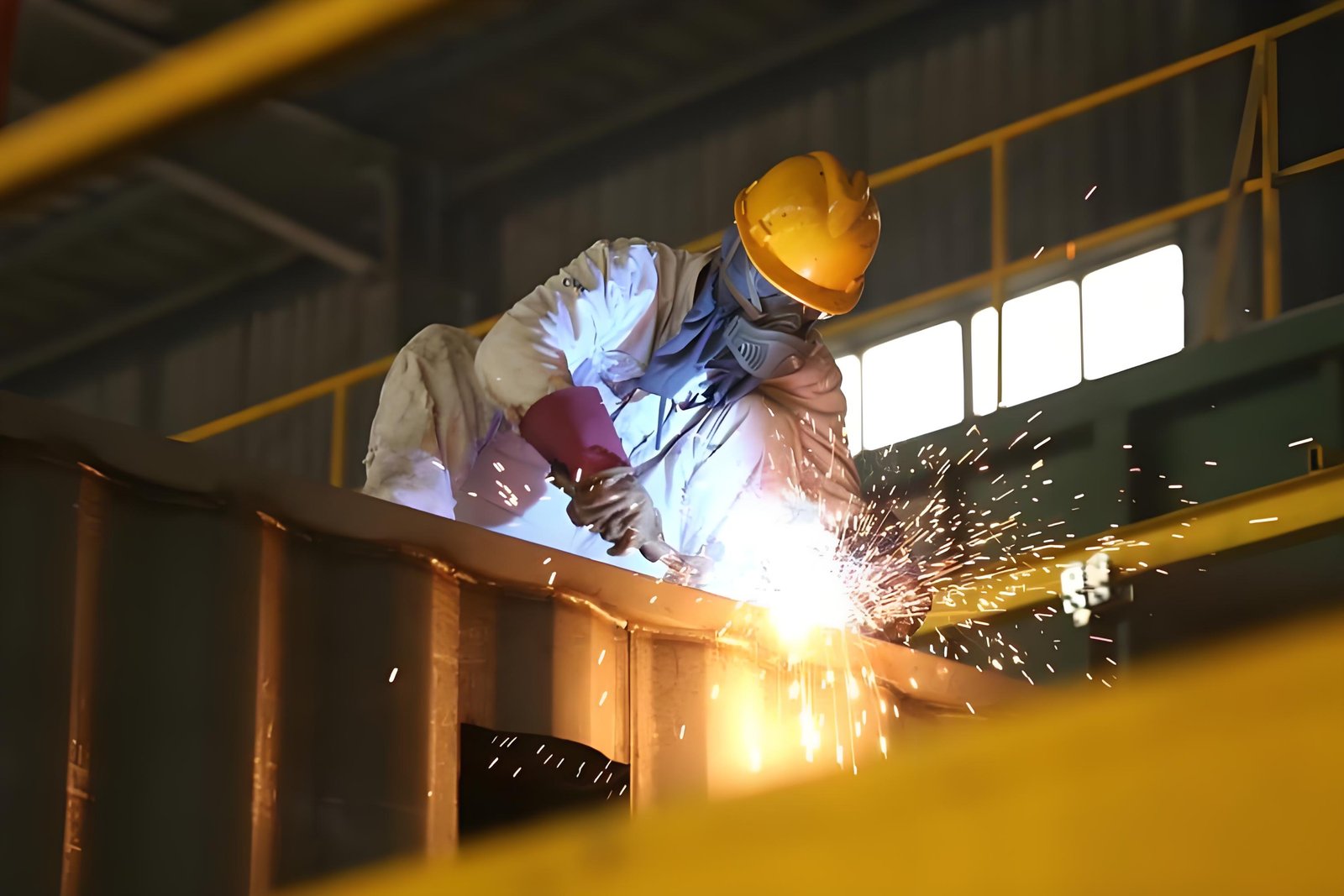

WANDONG ENVIRO Heavy-Duty Carbon Steel Skid Frame Welding
01 / WELDING
Submerged Arc Welding
Automated double-sided welding ensures 100% structural integrity of the carbon steel tanks.

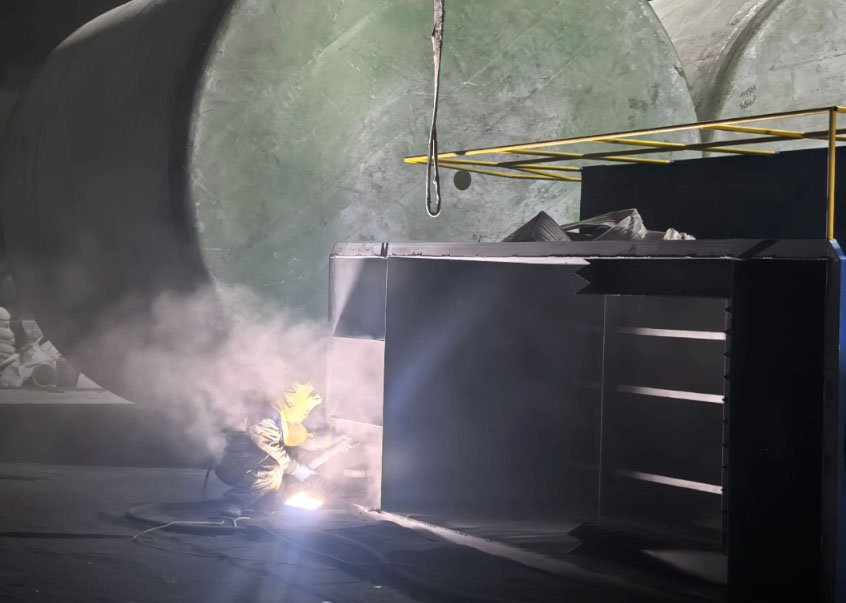

WANDONG ENVIRO Internal Epoxy Anti-Corrosion Coating for MBR Tank
02 / COATING
Anti-Rust Epoxy Paint
Sandblasted to SA2.5 followed by 3 layers of marine-grade epoxy to survive highly corrosive sewage.

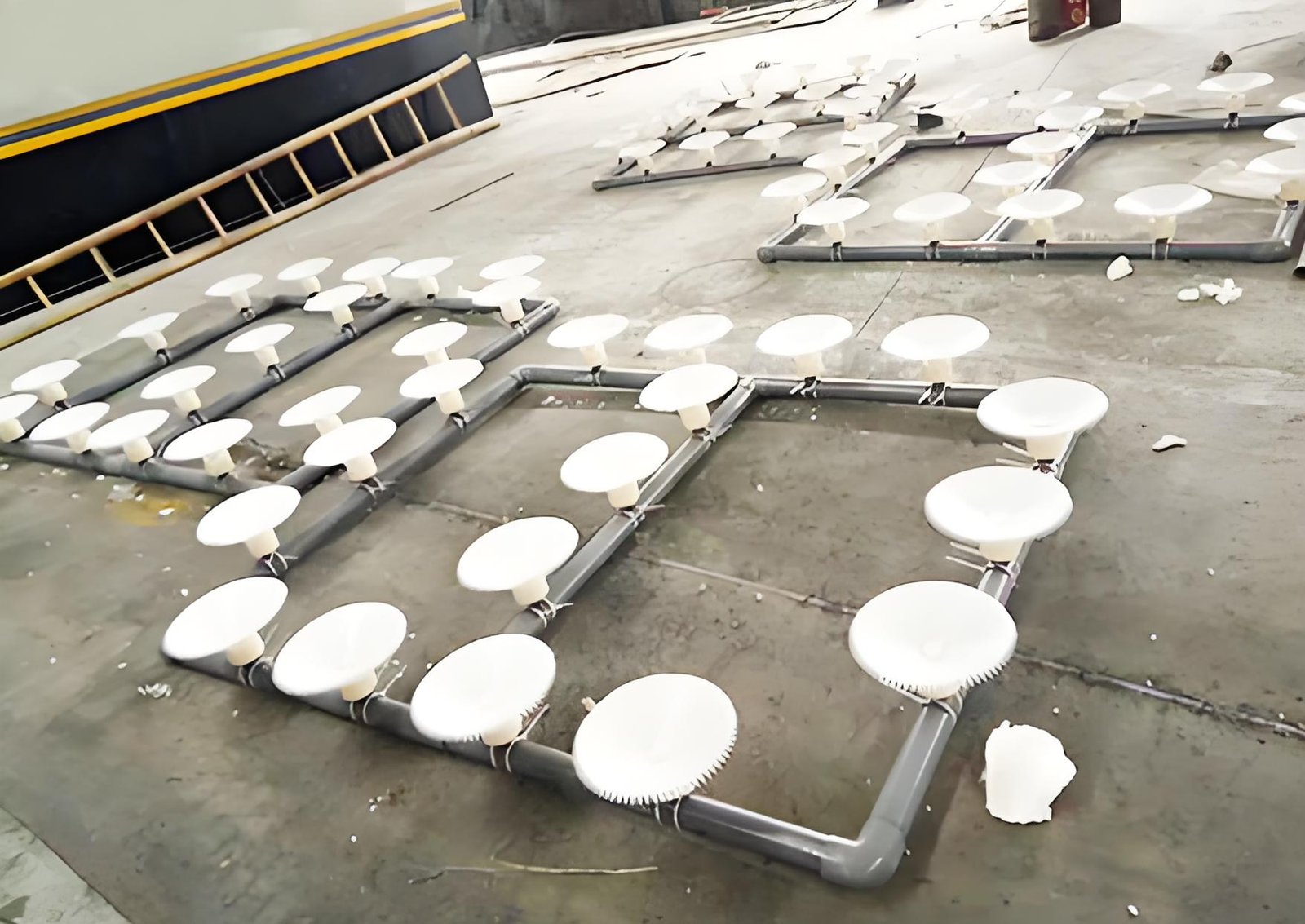

WANDONG ENVIRO Fine Bubble Aeration Diffuser System for MBR
03 / HYDRAULICS
Aeration Manifold
Precision-drilled UPVC diffusers ensure uniform dissolved oxygen (DO) transfer to the biomass.
WANDONG ENVIRO Siemens PLC Electrical Control Cabinet
04 / ELECTRICAL
Siemens PLC Wiring
Industrial-grade terminal blocks with clear schematic labeling for easy maintenance.
/ MODULE-03E / COMPONENT ANATOMY

Transparent Quality.
Inside the Hardware.

We don't hide behind metal enclosures. Explore the internal engineering of our core components that guarantee continuous operation.

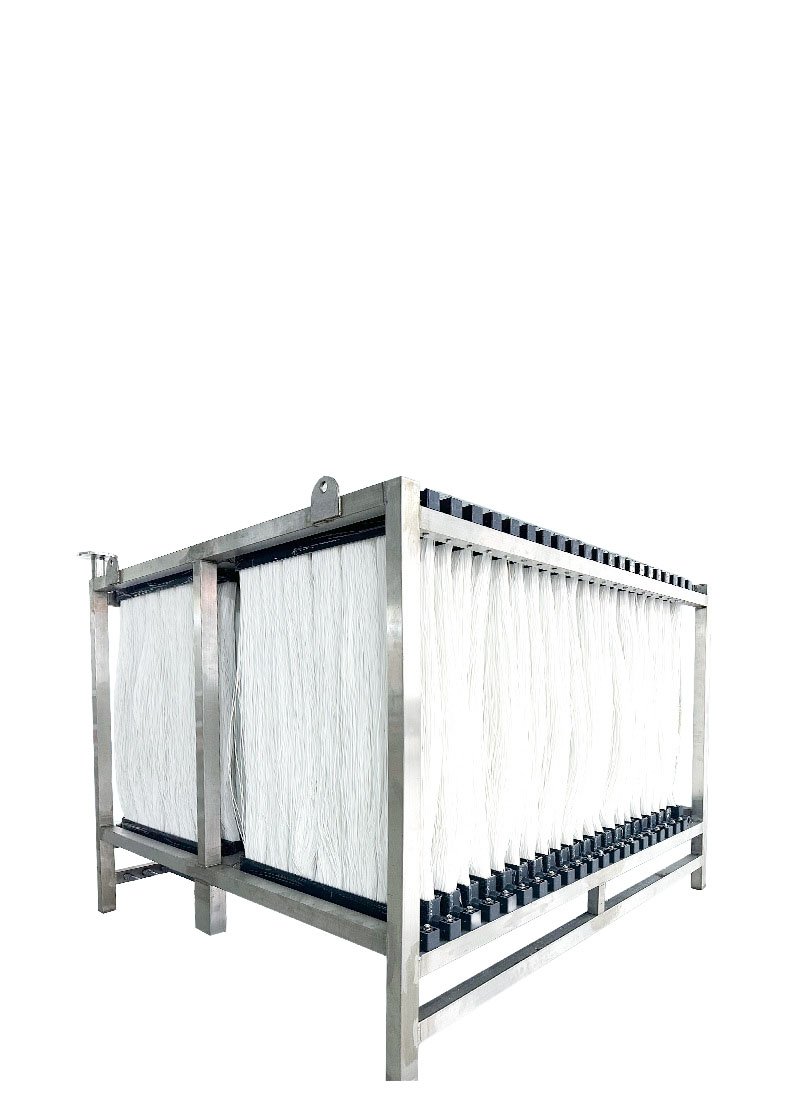

WANDONG ENVIRO Submerged Hollow Fiber MBR Membrane Module
01 / FILTRATION

MBR Cassette

Submerged flat sheet or hollow fiber modules. Provides an absolute 0.1µm barrier against all suspended solids.

WANDONG ENVIRO Roots Blower for Air Scouring
02 / AERATION

Roots Blower

Delivers high-volume oxygen to the aerobic bacteria while simultaneously scouring the MBR membranes to prevent fouling.

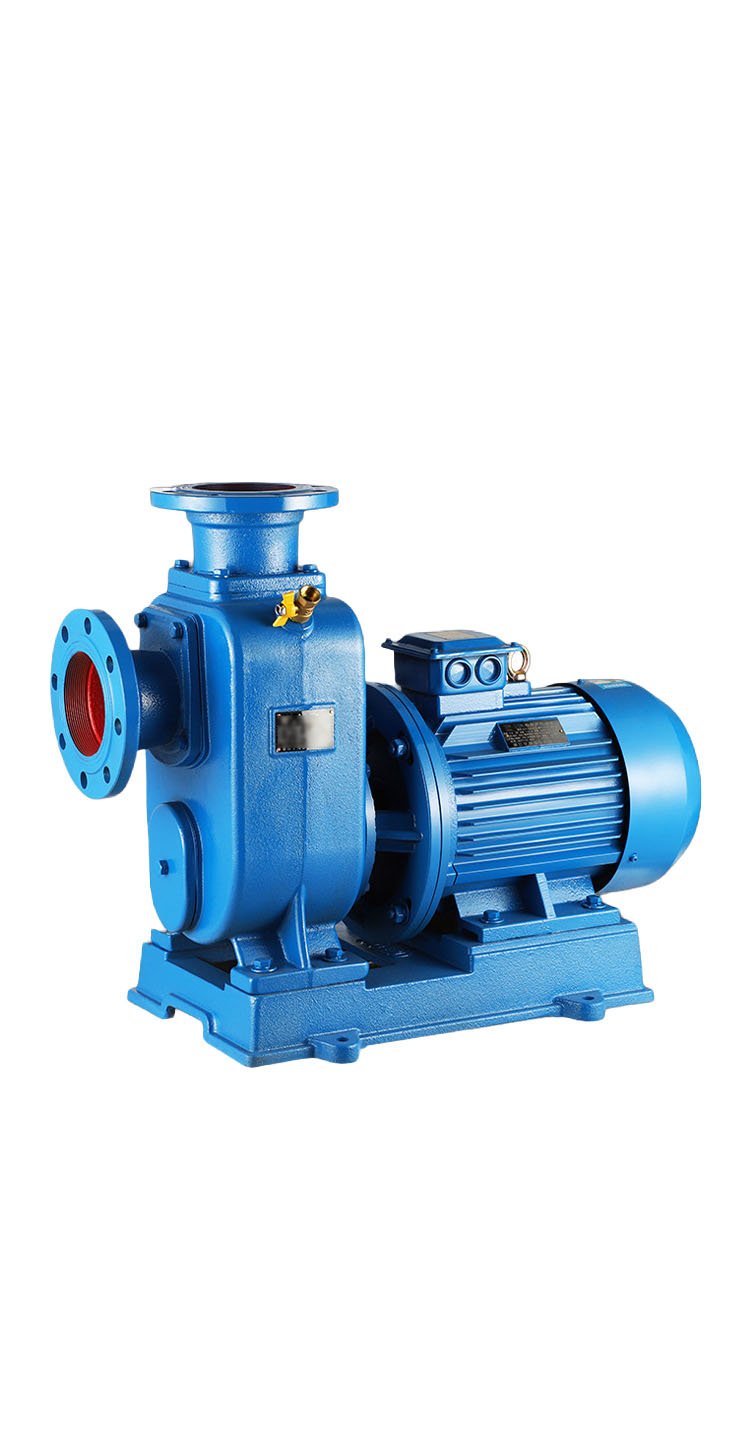

WANDONG ENVIRO Self-Priming Permeate Suction Pump
03 / EXTRACTION

Suction Pump

Self-priming centrifugal pump creates a gentle vacuum to draw pure water through the MBR pores.

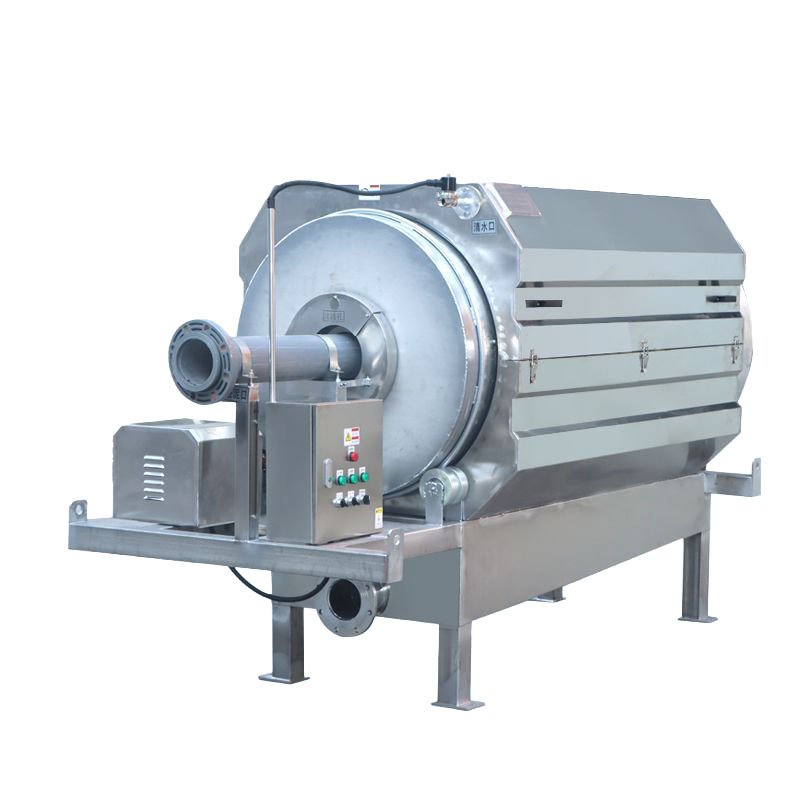

WANDONG ENVIRO Rotary Drum Fine Screen Micro Filter
04 / PRE-TREATMENT

Fine Bar Screen

1-2mm mechanical screen installed at the inlet to protect the MBR membranes from hair, plastics, and large debris.

/ MODULE-03D / BIOLOGICAL ANATOMY

Inside the Bioreactor.
Advanced Nutrient Removal.

It's not just a tank; it's a highly engineered ecosystem. Our A/O (Anoxic/Aerobic) configuration ensures complete Biological Nutrient Removal (BNR), destroying both organics and ammonia.

01

Anoxic Zone (Denitrification)

Oxygen is depleted here. Heterotrophic bacteria strip oxygen from nitrate (NO3-), converting it into harmless nitrogen gas (N2), effectively removing Total Nitrogen (TN) from the sewage.

02

Aerobic Zone (Nitrification)

Heavy aeration provides oxygen for aerobic bacteria to digest organics (BOD/COD) and convert toxic ammonia (NH3) into nitrate, which is then recirculated back to the Anoxic zone.

03

MBR Membrane Zone

Submerged directly in the high-MLSS sludge, the 0.1µm membrane acts as a physical barrier, drawing out crystal-clear water while keeping 100% of the bacteria inside the reactor.

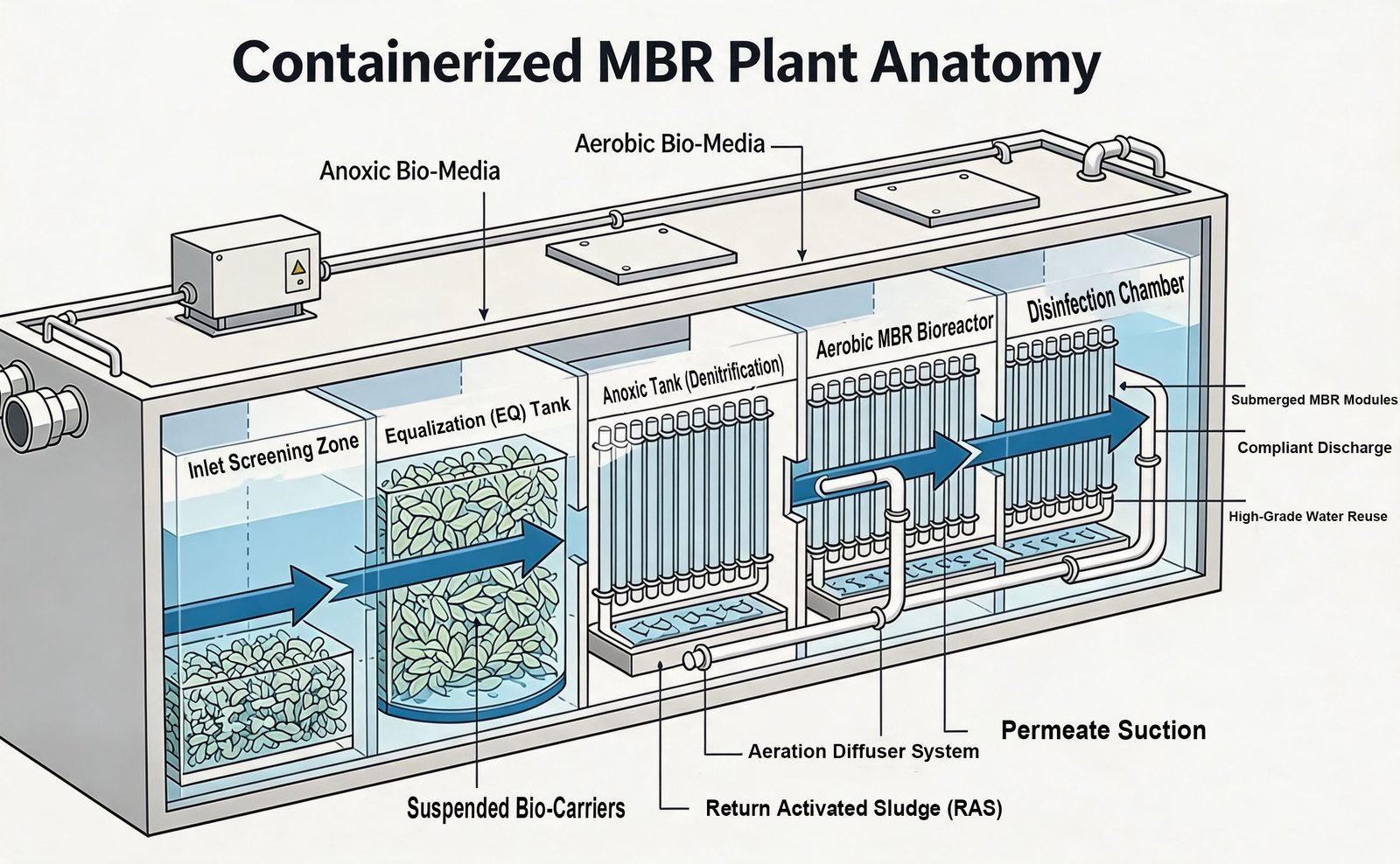

WANDONG ENVIRO Containerized MBR Sewage Plant Internal Anatomy
/ MODULE-03C / INTELLIGENT O&M & SAFETY

Cloud-Based IoT SCADA.
Unattended Operation.

Monitor and manage your MBR plant from anywhere in the world. Our proprietary YunPLC cloud system ensures zero downtime for remote mining camps and island resorts.

Smart Cloud Monitoring APP

Independently developed YunPLC IoT APP system via 4G/WiFi. Detects real-time data and pushes SMS/WeChat alarms for abnormal conditions, realizing true unmanned management without fixed IPs.

01. Real-Time TMP Tracking LIVE GRAPH
02. Blower & Pump Status CONTINUOUS
03. Remote Parameter Adjustment APP ENABLED
04. Fault Alarm Push SMS / APP NOTIFY
05. Historical Data Log CLOUD STORAGE
CDO: INSERT APP DASHBOARD IMAGE

Showcasing real-time Transmembrane Pressure (TMP) and flow rate monitoring via iOS/Android interface.

Engineered for rapid deployment with three standardized, zero-concrete form factors:

  • CONTAINERIZED (ISO HIGH-CUBE): 100% above-ground and fully relocatable. Eliminates the nightmare of digging expensive concrete pools at remote camps.

  • SKID-MOUNTED (OPEN-FRAME): High-density electromechanical integration. Drops directly into tight factory floor plans to maximize space.

  • UNDERGROUND PACKAGED: The invisible footprint for Eco-Resorts and Premium Commercial Estates. Buried discreetly with absolute zero odor.

/ MODULE-04A / LIMITS

Influent Boundary
Conditions.

Raw sewage must comply with the following biological parameters. Heavy metals or toxic chemicals will destroy the activated sludge microbiology.

⚠ ENGINEERING NOTICE
Industrial effluents or commercial kitchens with FOG (Fats, Oils, Grease) > 50 mg/L require mandatory upstream Dissolved Air Flotation (DAF) to prevent membrane blinding.
PARAMETER MAX LIMIT
Chemical Oxygen Demand (COD) < 1000 mg/L
Biological Oxygen Demand (BOD₅) < 500 mg/L
Fats, Oils, and Grease (FOG) < 50 mg/L
Heavy Metals / Toxicants STRICTLY PROHIBITED
/ MODULE-04B / COMMITMENT

Target Effluent
Performance Guarantee.

When influent conditions are met and the biology is stabilized, WANDONG ENVIRO contractually guarantees the following discharge quality standards.

✔ REUSE COMPLIANCE SECURED
Effluent strictly complies with stringent WHO / EPA guidelines for unrestricted urban irrigation and toilet flushing.
OUTPUT METRIC GUARANTEED VALUE
Effluent BOD₅ ≤ 10 mg/L
Total Suspended Solids (TSS) < 1.0 mg/L
Turbidity < 0.5 NTU
Fecal Coliforms Non-Detectable
root@wandong-engineering-server:~# cat mbr_architecture_overview.log
> INITIATING SYSTEM OVERVIEW: WANDONG ENVIRO represents the pinnacle of packaged membrane bioreactor (MBR) manufacturing. By eliminating the massive footprint required for traditional concrete clarifiers, our high-MLSS integrated biological modules secure highly purified effluent for the world's most demanding environments.
> PROCESS ANALYSIS: The heavy-duty MBR process architectures are built exclusively utilizing Tier-1 membrane cassettes (Kubota/Suez) submerged in robust aeration tanks. Whether the application requires a containerized sewage plant for remote mining camps, an odorless underground unit for luxury island resorts, or a field hospital pathogen-destruction system, the design philosophy remains uncompromising.
> ENGINEERING PROTOCOL: All turnkey wastewater solutions undergo rigorous hydrostatic and FAT testing. The Siemens PLC fully automates sludge recirculation, aeration timing, and chemical-enhanced backwashing (CEB) to prevent membrane fouling. The result is a guaranteed crystal-clear reusable water ready for irrigation or toilet flushing.
> SYSTEM STATUS: BIOLOGY STABILIZED / OPERATIONAL
/ MODULE-05 / SPECIFICATION MATRIX

Membrane Selection
Cross-Manufacturer Matrix.

SCROLL HORIZONTALLY →
DATA SOURCE: OEM TECHNICAL BULLETINS
// CATEGORY MBR Module Class M1 Kubota® JAPAN M2 Suez ZeeWeed® CANADA M3 Toray / Mitsubishi JAPAN
Flat Sheet (FS) MBR High MLSS Tolerance RUGGED
MODEL: RM/EK Series
Material: Chlorinated PE
Pore Size: 0.4 µm nominal
Cleaning: Air Scour Only
Advantage: Zero fiber-breakage risk
N/A
Suez primarily focuses on Hollow Fiber technology.
MODEL: TMR140 Series
Material: PVDF
Pore Size: 0.08 µm
Cleaning: Chem. Backwash
Advantage: Extremely high flux
Hollow Fiber (HF) MBR High Packing Density COMPACT
N/A
Kubota specializes exclusively in Flat Sheet technology.
MODEL: ZW500D
Material: Reinforced PVDF
Pore Size: 0.04 µm
Cleaning: Pumped Backwash
Advantage: Massive surface area
MODEL: SURA / Sterapore
Material: PVDF / PTFE
Pore Size: 0.05 µm
Cleaning: Air & Pump Backwash
Advantage: Excellent tensile strength
// Exact membrane selection depends on feed water FOG content, MLSS targets, and available footprint. REV: 2026.01
/ MODULE-06 / LIFECYCLE

TMP & Flux Attenuation
Performance Decay Modeling.

TABLE-6.1
Design Flux vs MLSS Concentration
NORMALIZED
WASTEWATER TYPE TARGET MLSS DESIGN FLUX (LMH)
Municipal / Domestic Sewage 8,000 mg/L 20-25 LMH
Mining Camp Grey/Black Water 10,000 mg/L 15-20 LMH
Food & Beverage Effluent 12,000 mg/L 10-15 LMH
Hospital / Medical Sewage 8,000 mg/L 18-22 LMH
// Operating at higher MLSS (Mixed Liquor Suspended Solids) reduces tank size but requires lowering the extraction flux to prevent rapid fouling.
TABLE-6.2
Transmembrane Pressure (TMP) Recovery
CHEMICAL CLEANING
MAINTENANCE PROTOCOL CHEMICAL USED FREQUENCY
Continuous Air Scouring Air 24/7
Maintenance Cleaning (MC) NaOCl (Sodium Hypochlorite) Weekly
Recovery Cleaning (RC) - Organics High-Dose NaOCl Every 3-6 Months
Recovery Cleaning (RC) - Inorganics Citric Acid / Oxalic Acid Every 6-12 Months
// Max allowable TMP is typically 0.2 - 0.4 bar. Strict adherence to MC and RC protocols ensures 3-5 years of membrane life.
/ MODULE-07 / P&ID

Process Flow
Biological Denitrification & MBR.

TOPOLOGY: ANOXIC + AEROBIC (A/O) MBR · SLUDGE RETURN: 200% - 300%
STEP-01
Equalization
Fine Bar Screen
STEP-02
Anoxic Tank
Denitrification
STEP-03 ◆
Aerobic + MBR
Aeration Blower
STEP-04
Permeate Pump
Vacuum Suction
STEP-05 ★
Disinfection
UV / NaOCl
RAW SEWAGE BOD
~ 300 mg/L
PRODUCT BOD
< 10 mg/L
AMMONIA NITROGEN
< 5 mg/L
TARGET MLSS
8,000 mg/L

How the Packaged Membrane Bioreactor (MBR) Works (Engineering Details)

Step 1: Mechanical Screening & Equalization. Raw domestic or medical sewage enters through a fine bar screen (1-2mm) to remove hair, plastics, and debris. The wastewater is temporarily held in an Equalization (EQ) tank to absorb peak flow shocks, a critical step for any containerized sewage treatment plant.

Step 2: Biological Denitrification (Anoxic Zone). The sewage is pumped into the Anoxic tank where oxygen is depleted. Here, specific heterotrophic bacteria utilize the organic carbon in the wastewater to strip oxygen from nitrate (NO3-), converting it into harmless nitrogen gas (N2). This process is essential for meeting strict biological nutrient removal (BNR) standards.

Step 3: Nitrification & Membrane Filtration (Aerobic Zone). The water flows into the heavily aerated MBR tank, which maintains a massive Mixed Liquor Suspended Solids (MLSS) concentration of 8,000 to 12,000 mg/L. Aerobic bacteria digest the remaining organics and convert ammonia to nitrate. Submerged directly within this sludge are the Kubota or Toray flat sheet MBR cassettes. A slight vacuum draws clear water through the 0.1μm pores, leaving 100% of the sludge and bacteria behind.

Step 4: Permeate Extraction & Disinfection. The highly purified permeate is extracted by suction pumps. Because the MBR membrane acts as an absolute physical barrier against pathogens, the effluent only requires a final UV polish or light chlorination before it is discharged or directly reused for unrestricted urban irrigation.

/ MODULE-08B / MICRO-ANATOMY

Submerged
Filtration Dynamics.

Unlike traditional settling clarifiers that rely on gravity, the MBR cassette is submerged directly into the high-concentration activated sludge. A suction pump creates a gentle vacuum, pulling pure water through the 0.1µm pores while air bubbles constantly scour the membrane surface to prevent clogging.

Permeate (Pure Water Suction)
Activated Sludge (MLSS Rejection)
Air Scouring (Bubble Agitation)

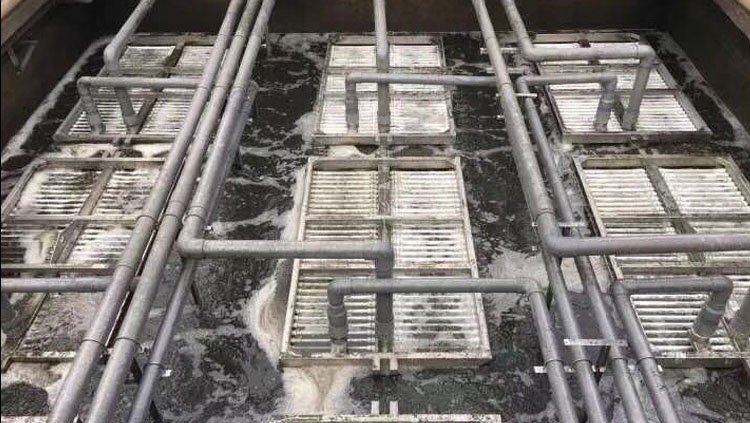

WANDONG ENVIRO MBR Membrane Bioreactor Filtration Mechanism
/ FIELD DEPLOYMENT / APPLICATION

Proven In The Most
Unforgiving Environments.

Packaged MBR plants delivering strict environmental compliance and water reuse across global EPC projects.

Remote Mining Camp Wastewater

Remote Mining Camps

Zero-discharge compliance for deep-desert EPC worker camps. Above-ground containerized units eliminate the nightmare of local civil concrete work.

Luxury Island Resort MBR

Luxury Island Resorts

Underground packaged MBR boxes. Zero noise, zero odor, completely hidden from guests. Effluent is directly recycled for golf course irrigation.

Field Hospital Wastewater

Field & Isolation Hospitals

Defending against biological crises. The MBR membrane acts as a physical barrier against pathogens, backed by potent UV/Chlorine sterilization.

/ MODULE-10 / SCOPE OF SUPPLY

Scope & Dimensions
Shipping Matrix.

// STANDARD INCLUSIONS
Battery Limits — Included
  • ✓Modified Shipping Container (HQ) · Epoxy Coated
  • ✓MBR Membrane Cassettes · Kubota / Suez
  • ✓Aeration Blowers · Aerzen / Goorui
  • ✓Permeate Suction Pumps · Self-Priming
  • ✓Siemens PLC + 7" HMI Control Panel
  • ✓Internal UPVC Piping & Aeration Diffusers
  • ✓Chemical Dosing Station (NaOCl for CIP)
  • ✓Liquid Level Sensors & Vacuum Gauges
  • ✓Pre-Shipment FAT (Dry & Wet Testing)
// OPTIONAL UPGRADES
À la Carte — Quote on Demand
  • +Underground FRP Tank Design · For Resorts
  • +Sludge Screw Press · Integrated dewatering
  • +Dissolved Air Flotation (DAF) · For high FOG
  • +Active Carbon Odor Control Unit
  • +Remote SCADA + IoT Dashboard
  • +Mechanical Rotary Drum Screen · 1mm slot
  • +UV-C Sterilizer Post-Treatment
  • +Container Air Conditioning & Insulation
  • +3rd-Party Inspection (BV / SGS / Lloyd's)
LEAD TIME
45 days
INCOTERMS
FOB / CIF / EXW
FAT
Pre-shipment Test ✓
DOC PACK
.DWG / .PDF / .STEP
TABLE-9.1
Shipping & Footprint Matrix (Domestic Sewage Basis)
DIMENSIONS IN MM · WEIGHTS IN KG
MODEL CAPACITY (M³/DAY) INSTALLED POWER L × W × H (MM) DRY WEIGHT CONTAINER / FORMAT
WD-MBR-25 25.0 3.5 kW 3000×2000×2400 2,500 kg 20'GP
WD-MBR-50 50.0 5.5 kW 6000×2000×2400 4,000 kg 20'HQ
WD-MBR-100 100.0 9.0 kW 9000×2000×2400 6,500 kg 40'HQ
WD-MBR-200 200.0 15.0 kW 12000×2400×2600 9,000 kg 40'HQ
WD-MBR-300 300.0 22.0 kW 2 × 40'HQ Units 16,000 kg 2 × 40'HQ
WD-MBR-500 500.0 37.0 kW 3 × 40'HQ Units 24,000 kg 3 × 40'HQ
WD-MBR-1000 1000.0 75.0 kW Civil Work + Skids Modular Bulk Skid
WD-MBR-MAX >1000.0 Project Spec Custom EPC Custom EPC OOG / FR
/ MODULE-11 / EPC CHECK

Documentation & Compliance.
Built for EPC Integration.

// EPC RESOURCE PACK

Complete Engineering Bundle

All technical drawings, datasheets, and integration files required for EPC contractors, system integrators and design houses.

.DWG P&ID
.PDF DATASHEET
.STEP 3D MODEL
.XLSX BOM
.DWG LAYOUT
.PDF O&M MANUAL
🔒 DOWNLOAD EPC PACK (.ZIP) 68 MB · SUBMIT DETAILS TO UNLOCK
// COMPLIANCE STANDARDS

Certified & Auditable

ISO 9001:2015Quality Management
✓ ACTIVE
ISO 14001Environmental Mgmt
✓ ACTIVE
WHO Effluent GuidelinesSafe for Reuse
✓ COMPLIANT
CE DirectivesEU Conformity
✓ ACTIVE
/ MODULE-12 / GLOBAL EMPOWERMENT

Risk-Free Overseas Deployment.
Foolproof Remote Commissioning.

Buying heavy machinery across borders shouldn't be a gamble. We replace expensive overseas dispatch fees with rigorous factory prep, color-coded assembly, and 1-on-1 video engineering support.

Color-Coded Assembly

Zero guesswork. All systems arrive with English 3D P&IDs, color-coded piping, and clearly labeled flanges. Your local mechanical contractors simply connect the dots.

Live FAT Verification

We eliminate startup risks at the factory. You witness your system undergo rigorous hydrostatic and performance testing via live stream before it ever boards a ship.

1-on-1 Video Support

Direct access to the English-speaking process engineers who built your plant. Live video troubleshooting ensures your local team never faces downtime alone.

// LIFETIME SUPPORT

Genuine Spares.
72-Hour Global Dispatch.

Protect your investment. We stock 100% original consumables. Air-freight friendly via DHL/FedEx to prevent catastrophic downtimes.

01
MBR CASSETTES
Kubota / Suez
02
BLOWER FILTERS
Aerzen spares
03
WATER SENSORS
DO / pH / ORP / MLSS
04
DOSING PUMPS
NaOCl Injection
/ MODULE-13C / TECHNICAL FAQ

Hardcore FAQ.
Engineering-Grade Answers.

Flat Sheet (FS) is ideal for remote camps or high-grease environments because it requires zero backwashing and is virtually unbreakable. Hollow Fiber (HF) is chosen for large municipal projects where an extremely compact footprint is the priority.
For sensitive hospitality environments, we deploy our Underground Packaged MBR. The entire biological process is buried and sealed, with exhaust air routed through an integrated Active Carbon scrubber, ensuring absolutely zero odor at the surface.
Seeding the tanks with local activated sludge typically takes 2-4 weeks to reach the target 8,000 mg/L MLSS concentration. We provide a complete biological acclimatization manual and remote video guidance to ensure a successful startup.
Because MBR operates at a very high Sludge Retention Time (SRT) and MLSS concentration, the biological digestion is highly efficient. This means sludge production is drastically lower than conventional plants, requiring vacuum truck removal only every 3-6 months.
Yes. The 0.1μm to 0.4μm membrane pores act as an absolute physical barrier to bacteria and most pathogens. We combine this with robust UV and heavy Chlorination dosing to ensure zero viral load in the final effluent.
We provide a comprehensive 12-month mechanical warranty on all pumps, blowers, and PLC components. The MBR membrane cassettes carry a 3-year pro-rated OEM warranty, provided standard CEB cleaning protocols are followed.
For our containerized units, zero civil engineering is required. You simply pour a flat concrete slab, drop the container into place, and connect the main inlet, outlet, and power supply. It is a true plug-and-play solution.

Didn't find the answer you're looking for?

Speak to an Engineer
// Module-14 / Initiate Protocol

YOUR 50,000m²
ENGINEERING BACKEND.

"You focus on scaling your operations; let us handle the heavy-duty water infrastructure. Submit your parameters below, and our engineering team will architect a custom, zero-civil-work solution guaranteed to perform anywhere on earth."

Kane

Director of Global Projects

Priority Direct Line (Online)
Chat on WhatsApp
Send Direct Email
Connect on LinkedIn

Submit Site Specs

256-Bit Secure

DROP FILE OR CLICK

.PDF / .XLSX / .CSV (Max 10MB)

"Submit your raw water analysis report today. Our senior engineering team will provide a precise P&ID turnkey solution and factory-direct CapEx budget within 48 hours."

```
