/ MODULE-01 / SEAWATER DESALINATION CAPACITY: 1—5000 m³/day

Containerized
SWRO Desalination
Plants.

Heavy-duty Seawater Reverse Osmosis engineered for island resorts, coastal mining camps, and offshore platforms. Built with C5-M marine-grade anti-corrosion coating and Isobaric Energy Recovery Devices (ERD). 100% Plug & Play.

Salt Rejection
99.8%
ASTM D4516
Specific Energy
< 3.0 kWh/m³
With ERI™ Integration
Lifespan
15-20 yrs
Mechanical Frame
GET PLUG & PLAY DATASHEET (.PDF) → Talk to a Process Engineer

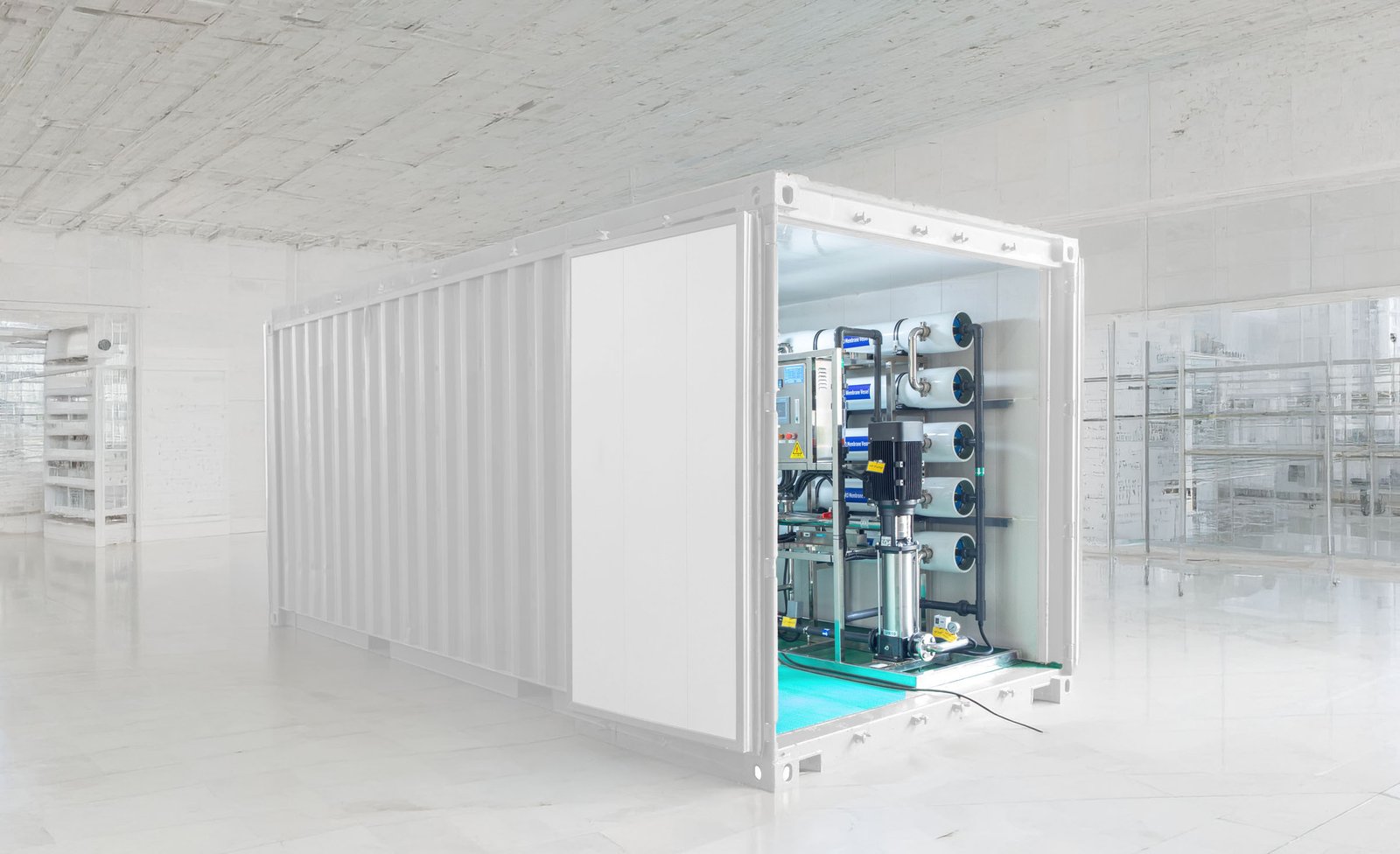

Containerized SWRO Desalination Plant 100% FAT Tested by WANDONG ENVIRO
100% FAT Tested Before Shipping
// PRESSURE RATING
60-80 bar

// Deployment Paradigm

Stop Digging Concrete Pools.
Start Pumping Pure Water in 7 Days.

Traditional On-Site Construction
  • × Months of messy, delayed civil work on remote islands or deep jungles.
  • × Bleeding margins due to unpredictable local labor and logistical nightmares.
  • × Vulnerable equipment exposed to harsh salt breeze and rapid corrosion.
  • × No centralized factory testing before installation, leading to startup failures.
THE SOLUTION
WANDONG Smart Modular™
  • ✓ Zero Civil Work: 100% pre-packaged in C5-M marine-painted steel containers.
  • ✓ Plug & Play: Connect the ocean intake, power up, and instantly generate fresh water.
  • ✓ Moveable Asset: Relocate your entire water plant to the next project site via truck.
  • ✓ 100% FAT Tested: Factory Accepted and hydro-tested before shipping. Zero guesswork.
/ MODULE-03 / GLOBAL SUPPLY CHAIN

Tier-1 Components.
Zero Compromise.

Every WANDONG SWRO platform is built exclusively from globally recognized Tier-1 OEM components. We act as your risk-free firewall against high-salinity marine corrosion.

01 / CORE MEMBRANE
DOW
FilmTec™

The undisputed industry benchmark for seawater reverse osmosis. Origin: USA.

MODELS: SW30HRLE / SW30XLE
REJECTION: 99.8%
02 / HYDRAULICS & ERD
DANFOSS®
+ ERI™

Axial piston high-pressure pumps coupled with ERI™ Isobaric Energy Recovery Devices.

ENERGY SAVING: UP TO 60%
POWER CONSUMPTION: < 3.0 kWh/m³
03 / CONTROL BRAIN
SIEMENS®
& SCHNEIDER®

S7-1200 PLC + Schneider Electrics + 7" HMI Touchscreen with SCADA integration.

PROTOCOL: MODBUS TCP/IP
REMOTE I/O: READY
CRITICAL ANTI-CORROSION
04 / PIPING
SS2205 /
SS2507

Duplex and Super Duplex stainless steel high-pressure piping. The absolute soul of marine anti-corrosion.

STANDARD: ASME B31.3
SKID FRAME: C5-M EPOXY
CAPEX OPTIMIZATION FLEXIBILITY
While we standardize on European/US Tier-1 components for maximum reliability, we offer Budget-Optimized Configurations utilizing rigorously tested Asian premium alternatives (e.g., CNP high-pressure pumps, CHINT electrics). We adapt to your project's CapEx limits without compromising the core performance guarantee.
/ MODULE-03B / ENGINEERING CRAFTSMANSHIP

The Anatomy of Reliability.

Precision engineering down to the last weld. No shortcuts.

SS2205 Duplex Stainless Steel TIG Welding for SWRO Desalination Plant
01 / WELDING
Argon Arc TIG Welding
Flawless SS2205 penetration to eliminate crevice corrosion in high-salinity environments.

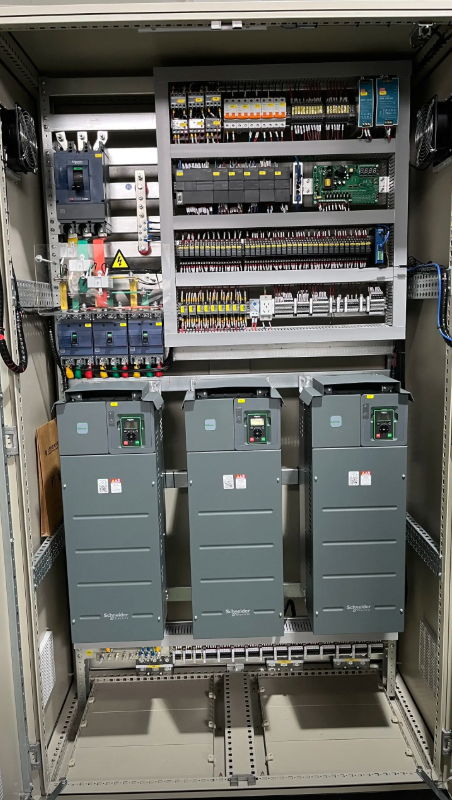

Siemens PLC Control Panel Wiring for Industrial Water Plant
02 / ELECTRICAL
Siemens PLC Wiring
Industrial-grade terminal blocks with clear schematic labeling.
SS2205 Duplex Stainless Steel High Pressure Manifold for SWRO
03 / HYDRAULICS
HP Manifold Integration
Vibration-dampened high-pressure piping tested to 100 bar.

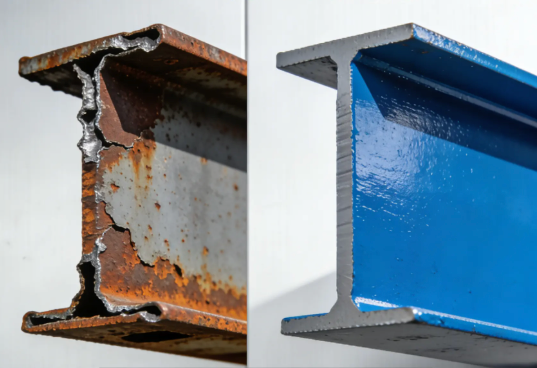

C5-M Marine Epoxy Coating Anti-Corrosion Test for Offshore SWRO
04 / COATING
C5-M Marine Paint
Multi-layer epoxy coating built to survive offshore salt-fog.
/ MODULE-03E / COMPONENT ANATOMY

Transparent Quality.
Inside the Hardware.

We don't hide behind metal enclosures. Explore the internal engineering of our core components that guarantee 15+ years of continuous operation.

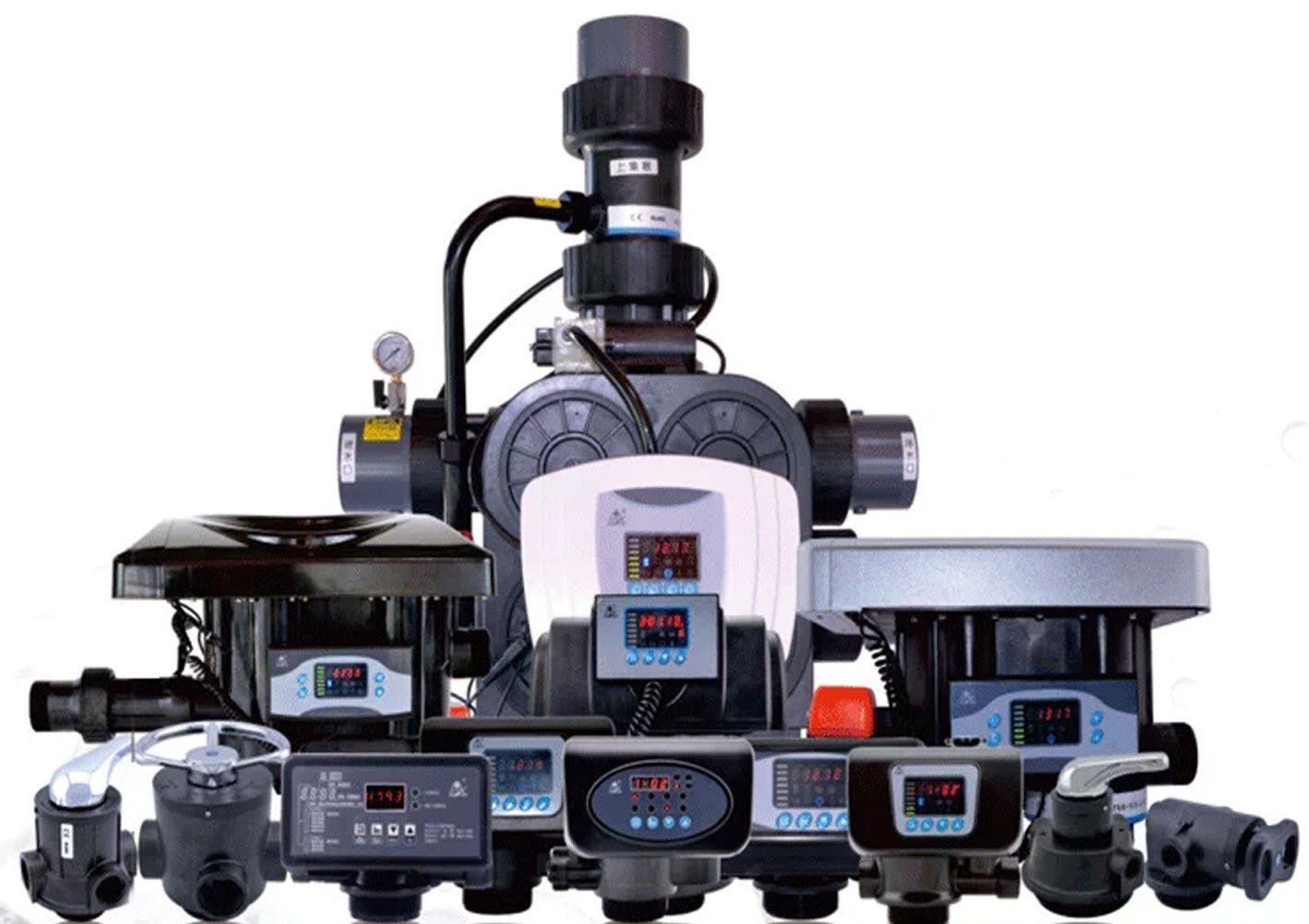

Automatic Control Valve with Ceramic Disk for Water Treatment
01 / AUTO-VALVE

Ceramic Core Disk

Wear-resistant, corrosion-proof ceramic internal disks ensure zero-leakage during backwash cycles.

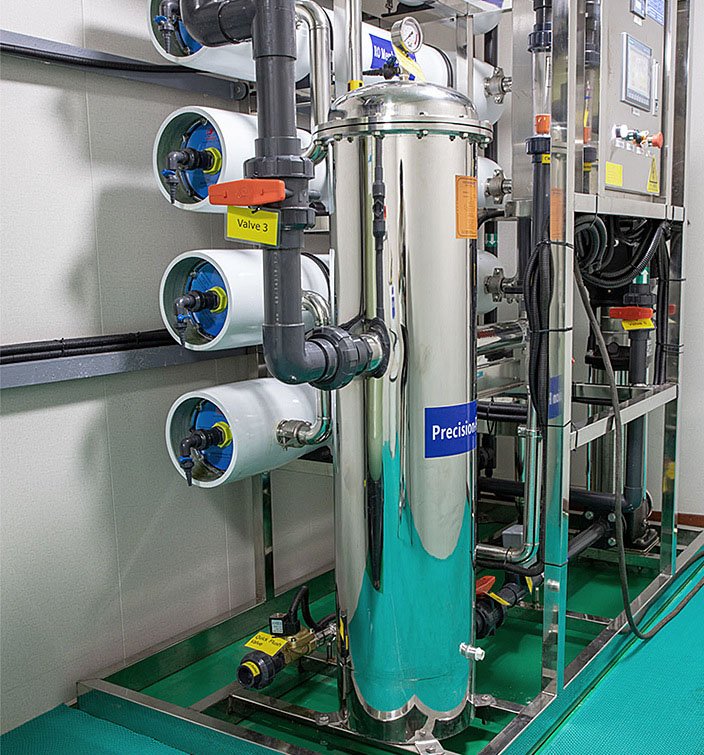

SS316L Security Precision Filter Cartridge Housing for RO System
02 / SECURITY FILTER

SS316L Housing

Heavy-wall stainless steel housing with V-band clamp design for rapid 5µm PP cartridge replacement.

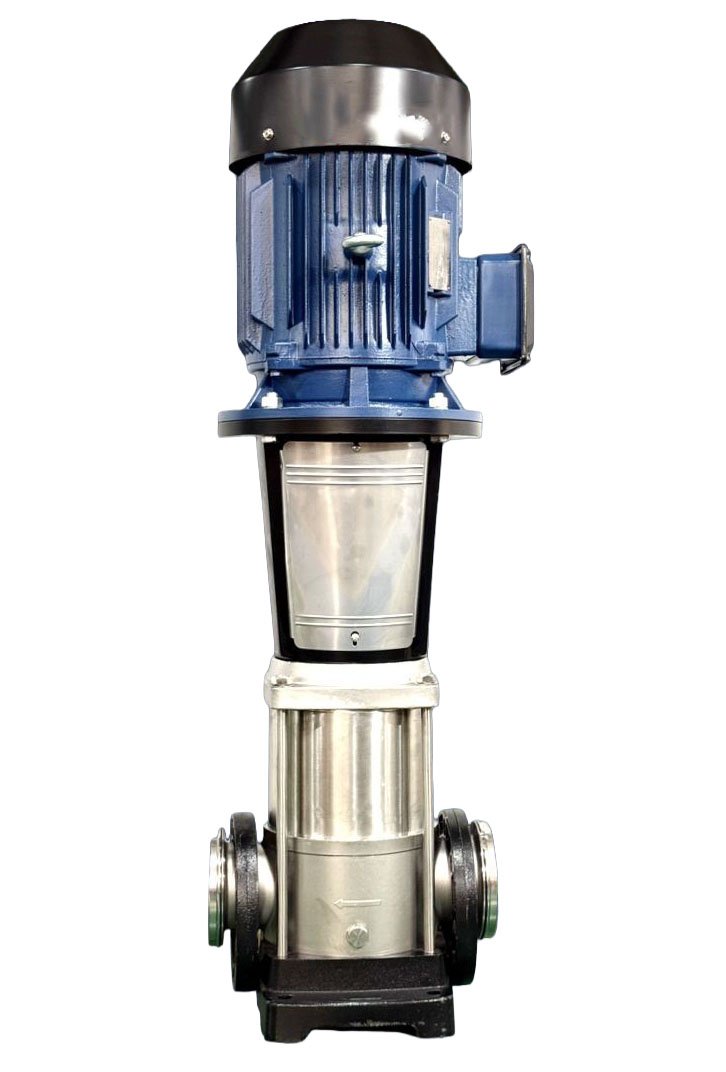

Vertical Multistage High Pressure Pump for Seawater Desalination
03 / HP PUMP

Multi-Stage Impellers

Laser-welded stainless steel impellers and tungsten carbide bearings for vibration-free high-pressure output.

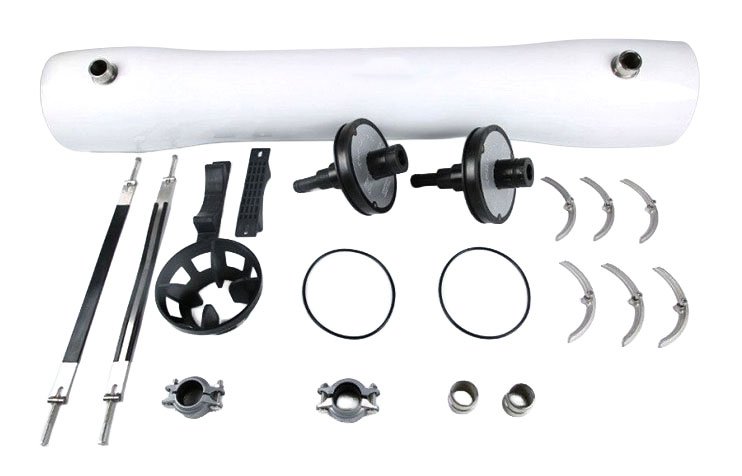

1000psi FRP Pressure Vessel Membrane Housing for SWRO
04 / PRESSURE VESSEL

Epoxy FRP Shell

Continuous fiberglass roving wound with epoxy resin. Burst-tested to 4x operating pressure for absolute safety.

/ MODULE-03D / PRE-TREATMENT ANATOMY

Visible Purification.
Multi-Stage Depth Filtration.

Protecting the RO membrane is the secret to a 15-year lifespan. Our heavy-duty SS304 vessels utilize stratified media beds to eradicate suspended solids, chlorine, and hardness before they reach the high-pressure stage.

01

Quartz Sand Media

Stratified layers of refined quartz sand intercept large particulates, rust, and colloidal matter, reducing feed water turbidity to < 1.0 NTU.

02

Activated Carbon

High iodine-value granular activated carbon (GAC) absorbs residual free chlorine, organics, and odors. Absolute protection against polyamide membrane oxidation.

03

Ion-Exchange Resin

Food-grade cation resin softens the water by replacing scaling Calcium (Ca²⁺) and Magnesium (Mg²⁺) ions with Sodium (Na⁺), preventing RO membrane scaling.

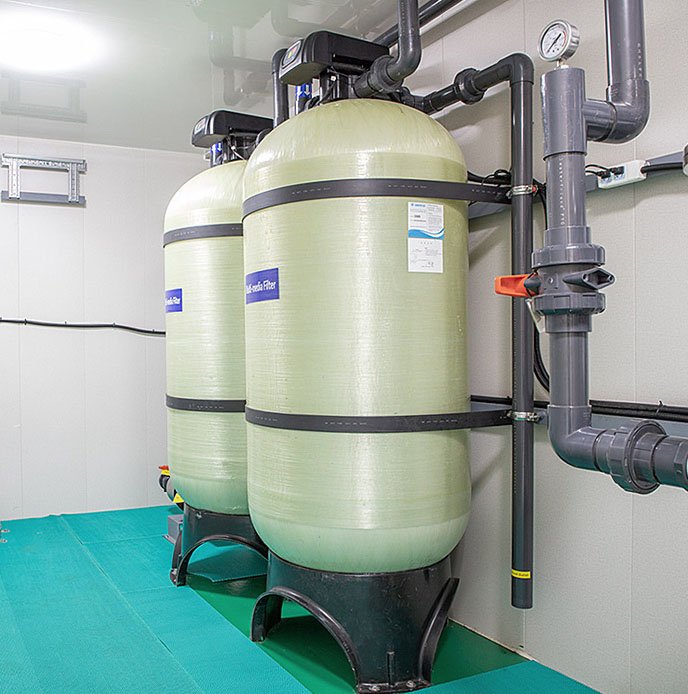

SWRO Pre-treatment Multi-media FRP Filter Tanks for Seawater Desalination
/ MODULE-03C / INTELLIGENT O&M & SAFETY

Foolproof Automation.
Built for Remote Islands.

When you are 500 miles from the nearest technician, your equipment must protect itself. Our Siemens/Schneider logic acts as an invisible operator.

5-Tier Failsafe Logic

Instantaneous shutdown protocols programmed into the Siemens PLC to prevent catastrophic pump or membrane failure.

01. Over-Pressure Shutdown > 6.5 MPa
02. Under-Pressure Protection < 0.05 MPa
03. Phase Loss / Reversal INSTANT TRIP
04. Motor Over-Current SCHNEIDER RELAY
05. Short-Circuit Protection ACTIVE

CIP & Smart Dosing

Membrane lifespan is your biggest OPEX. We integrate medical-grade dosing and cleaning systems to double the life of your DOW elements.

ANTISCALANT DOSING
Prevent Inorganic Scaling

Highly calibrated dosing pumps inject precise antiscalant chemicals before the high-pressure pump, eliminating calcium/magnesium scaling inside the pressure vessels.

INTEGRATED CIP SKID
Clean-in-Place System

Standardized built-in chemical cleaning tank and pump. Allows operators to flush and restore membrane flux without removing elements from the housing.

Delivered in two zero-civil-work, plug-and-play form factors:

  • CONTAINERIZED (ISO HIGH-CUBE): Marine-grade, climate-controlled enclosures built to survive harsh EPC sites. 100% zero civil work—just connect pipes and power for instant water security.

  • SKID-MOUNTED (OPEN-FRAME): Ultra-compact, forklift-loadable stainless steel frames. Designed to drop seamlessly into existing industrial plants with zero facility disruption.

/ MODULE-04A / LIMITS

Inlet Boundary
Conditions.

Feed seawater must comply with the following strict parameters. Exceeding these limits will void membrane warranty and require pre-treatment upgrade.

ENGINEERING NOTICE
Open ocean intakes prone to algae blooms (red tide) require mandatory Ultrafiltration (UF) pre-treatment.
PARAMETER MAX LIMIT
Max Salinity (TDS) ≤ 45,000 ppm
SDI₁₅ < 3.0
Free Chlorine (Cl₂) Strictly Not Detected (0 ppm)
Turbidity < 0.5 NTU
/ MODULE-04B / COMMITMENT

Target Permeate
Performance Guarantee.

When inlet conditions are met, WANDONG ENVIRO contractually guarantees the following effluent/permeate quality standards.

COMPLIANCE SECURED
Effluent strictly complies with WHO Drinking Water Guidelines (2022 Edition).
OUTPUT METRIC GUARANTEED VALUE
Product TDS ≤ 500 mg/L
Boron Level < 0.5 mg/L (Double-Pass)
Pathogens / Bacteria 99.99% Removed
System Recovery Rate 35% - 45%
root@wandong-engineering-server:~# cat swro_architecture_overview.log
> INITIATING SYSTEM OVERVIEW: WANDONG ENVIRO represents the pinnacle of containerized seawater desalination manufacturing. By eliminating the vulnerabilities associated with traditional on-site construction, our pre-commissioned, plug-and-play SWRO architecture secures uninterrupted freshwater supply for isolated coastal environments.
> PROCESS ANALYSIS: The heavy-duty SWRO process architectures are built exclusively utilizing Tier-1 global supply chains. Whether the application requires a desalination unit for an island resort, a mobile SWRO plant for coastal mining, or a municipal fresh water supply, the design philosophy incorporates C5-M marine-grade protection and SS2205/SS2507 Duplex steel to resist extreme high-salinity corrosion.
> ENGINEERING PROTOCOL: All turnkey SWRO solutions integrate advanced Energy Recovery Devices (ERI™) and undergo a rigorous Factory Acceptance Test (FAT). This live fluid simulation validates hydrostatic pressure integrity up to 80 bar, Siemens PLC automation logic, and precise chemical dosing algorithms. The result is absolute compliance with WHO potable water standards.
> SYSTEM STATUS: SWRO OPERATIONAL
/ MODULE-06 / SPECIFICATION MATRIX

Membrane Selection
Cross-Manufacturer Matrix.

SCROLL HORIZONTALLY →
DATA SOURCE: OEM TECHNICAL BULLETINS
// CATEGORY SWRO Membrane Class M1 DOW FilmTec™ USA M2 Hydranautics / Nitto JAPAN M3 Toray JAPAN
Standard Seawater TDS ~ 35,000 ppm STANDARD
MODEL: SW30HRLE-400
Active Area: 400 ft²
Permeate Flow: 7,500 GPD
Rejection: 99.8%
Test Pressure: 800 psi
MODEL: SWC5
Active Area: 400 ft²
Permeate Flow: 9,000 GPD
Rejection: 99.8%
Test Pressure: 800 psi
MODEL: TM820V-400
Active Area: 400 ft²
Permeate Flow: 9,000 GPD
Rejection: 99.8%
Test Pressure: 800 psi
High-Rejection SWRO TDS > 40,000 ppm RUGGED
MODEL: SW30XHR-440i
Active Area: 440 ft²
Permeate Flow: 9,000 GPD
Rejection: 99.8%
Boron Rejection: 93%
MODEL: SWC6
Active Area: 400 ft²
Permeate Flow: 12,000 GPD
Rejection: 99.8%
Boron Rejection: 91%
MODEL: TM820K-440
Active Area: 440 ft²
Permeate Flow: 6,600 GPD
Rejection: 99.85%
Boron Rejection: 95%
// Test conditions per OEM. Actual performance varies with feed water composition. REV: 2025.04
/ MODULE-07 / LIFECYCLE

Membrane Attenuation
Performance Decay Modeling.

TABLE-7.1
Water Flux Attenuation
PER ASTM D4194
WATER SOURCE SDI₁₅ DESIGN FLUX DECAY %/YR
Open Ocean Intake < 3 13 LMH 6.0%
Beach Well Intake < 2 15 LMH 4.4%
Red Tide Prone Area 3-5 11 LMH 9.9%
TABLE-7.2
Salt Permeating Increment
ΔSP / YEAR
MEMBRANE TYPE INIT. PASSAGE INCREMENT %/YR
Standard Seawater SWRO 0.2% +10%
High-Rejection SWRO 0.15% +8%
Low-Energy SWRO 0.3% +12%
// Values normalized per ASTM D4516. Assumes CIP every 3-6 months.
/ MODULE-08 / P&ID

Process Flow
Single-Pass vs Double-Pass.

TOPOLOGY: SWRO + ISOBARIC ERD · RECOVERY: 40% · ENERGY: < 3.0 kWh/m³
STEP-01
Ocean Intake
Intake Pump
STEP-02
UF Pre-treatment
SDI<3 / Cl=0
CORE
STEP-03 ◆
HP Pump + ERD
65 bar / SS2507
STEP-04
SWRO Stack
TDS < 500ppm
STEP-05 ★
Remineralization
Calcite Filter
FEED TDS
35,000 ppm
PRODUCT TDS
< 500 ppm
BORON
< 1.0 mg/L
RECOVERY
40%

How the Seawater Desalination Process Works (Engineering Details)

Step 1: Raw Water Pre-treatment Skid. The process begins by pumping seawater into the multi-media or Ultrafiltration (UF) skid. This critical seawater desalination pre-treatment stage reduces the Silt Density Index (SDI < 3) and eliminates marine bio-fouling risks to protect the polyamide membrane from irreversible oxidation.

Step 2: Chemical Dosing & ERD Integration. To prevent inorganic scaling within the pressure vessels, a highly calibrated Antiscalant dosing pump injects precise chemicals. An integrated CIP (Clean-in-Place) system is standard to ensure long-term membrane vitality. Simultaneously, the brine pressure is captured by an Isobaric Energy Recovery Device (ERI™ ERD), which reduces overall power consumption to < 3.0 kWh/m³.

Step 3: High-Pressure Separation (SWRO Stack). Powered by premium Duplex stainless steel pumps, the pre-treated seawater is forced through the containerized SWRO membrane elements at pressures up to 60-80 bar. The semi-permeable membranes achieve a salt rejection rate of >99.8%, separating the permeate (fresh water) from the brine (concentrate).

Step 4: Post-Treatment (Remineralization). The pure permeate passes through a calcite filter to add essential minerals back into the water, adjusting the pH and ensuring the turnkey SWRO desalination plant delivers water that strictly complies with WHO drinking water standards.

/ MODULE-08B / MICRO-ANATOMY

Cross-Flow
Separation Dynamics.

Unlike standard dead-end filtration, our SWRO elements utilize a dynamic cross-flow design. High-pressure feed water sweeps across the membrane surface, preventing rapid fouling while forcing pure H₂O molecules through the 0.0001µm semi-permeable polyamide layer.

Feed Water (High Pressure)
Permeate (Pure H₂O)
Concentrate (Brine Reject)

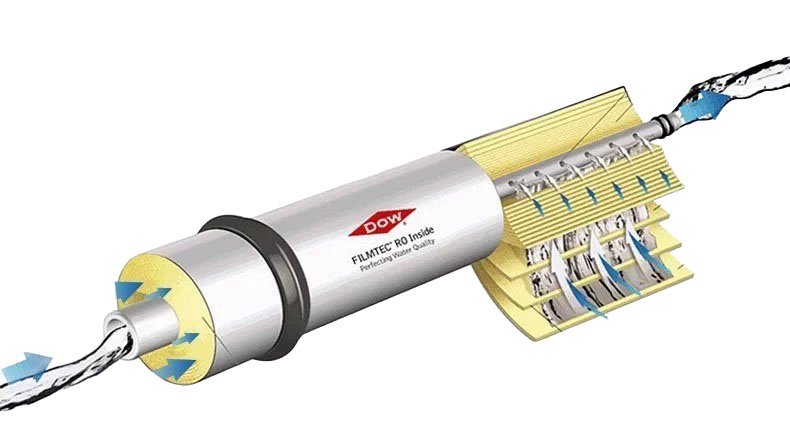

3D Anatomy of DOW FilmTec Reverse Osmosis (RO) Membrane Element showing Cross-Flow Separation Dynamics
01. PERMEATE TUBE Central Collection
02. POLYAMIDE LAYER 0.0001µm Active Rejection
03. FEED SPACER Cross-Flow Channel
04. FRP OUTER WRAP High Pressure Shell
/ FIELD DEPLOYMENT / APPLICATION

Proven In The Most
Unforgiving Environments.

Containerized plants operating seamlessly across extreme climates and demanding high-salinity applications globally.

Island Resort Desalination

Isolated Island Resorts

Silent operation SWRO packages hidden inside aesthetic enclosures. C5-M marine paint prevents severe salt-breeze corrosion for Maldives and Caribbean resorts.

Coastal Mining Camp Desalination

Coastal Mining Camps

Turnkey potable water supply for 1000+ workers. Designed to withstand +50°C ambient temperatures and severe coastal dust storms.

Offshore Oil Rig Desalination

Offshore Oil & Gas Platforms

Compact footprint skid-mounted desalination. ATEX compliant components and integration with existing SCADA systems.

/ MODULE-10 / SCOPE OF SUPPLY

Scope & Dimensions
Shipping Matrix.

// TYPICAL STANDARD INCLUSIONS
Battery Limits (Configurable)
  • ✓Skid Frame · Carbon Steel + C5-M Marine Epoxy
  • ✓High-Pressure Piping · SS2205 / SS2507 Super Duplex
  • ✓Low-Pressure Piping · UPVC / SS316L
  • ✓Pre-Filtration · 5μm Security Cartridge Filter
  • ✓Pumping System · Raw Water Pump + HP Pump (Danfoss/CNP)
  • ✓Premium SWRO Membranes · DOW / Toray / Vontron
  • ✓FRP Pressure Vessels · 1000/1200 psi Rating
  • ✓Energy Recovery Device · ERI™ / Danfoss / Equivalent
  • ✓Control Panel · Siemens / Schneider PLC + HMI
  • ✓Instrumentation · Conductivity, pH, Flow, Pressure Sensors
// OPTIONAL UPGRADES
À la Carte — Quote on Demand
  • +Double-Pass BWRO Polish · For Boiler Feed
  • +CIP (Clean-in-Place) Skid · Integrated
  • +Container Air Conditioning & Insulation
  • +VFD (Variable Frequency Drive) · ABB / Siemens
  • +Remote SCADA + IoT Dashboard
  • +Calcite Remineralization Filter
  • +UV-C Sterilizer · 254 nm
  • +3rd-Party Inspection (BV / SGS / Lloyd's)
  • +Extended 5-Year Mechanical Warranty
  • ⟿ Custom Engineering: Fully tailored to your specific raw water report and site constraints.
LEAD TIME
45-60 days
INCOTERMS
FOB / CIF / EXW
FAT
Pre-shipment Test ✓
DOC PACK
.DWG / .PDF / .XLSX
TABLE-10.1
Shipping & Footprint Matrix
DIMENSIONS IN MM · WEIGHTS IN KG
MODEL CAPACITY (M³/DAY) INSTALLED POWER L × W × H (MM) DRY WEIGHT CONTAINER
WD-SWRO-25 25.0 11.0 kW 2200×1200×1800 850 kg LCL (Skid)
WD-SWRO-50 50.0 15.0 kW 3000×1500×2000 1,400 kg 20'GP
WD-SWRO-100 100.0 30.0 kW 4500×1800×2200 2,800 kg 20'GP
WD-SWRO-250 250.0 45.0 kW 5800×2200×2200 4,500 kg 20'GP / 40'HQ
WD-SWRO-500 500.0 90.0 kW 9000×2400×2600 8,200 kg 40'HQ
WD-SWRO-1000 1000.0 160.0 kW 12000×2400×2600 12,500 kg 2×40'HQ
WD-SWRO-2500 2500.0 315.0 kW Modular 28,000 kg Bulk Skid
WD-SWRO-5000 5000.0 630.0 kW Modular 55,000 kg Custom EPC
WD-SWRO-MAX >5000 Project Spec Custom EPC Custom EPC OOG / FR
/ MODULE-11 / DOCUMENTATION

Documentation & Compliance.
Ready for Global Deployment.

// TECHNICAL RESOURCE PACK

Pre-Sales Engineering Bundle

Comprehensive technical blueprints and datasheets designed to help project owners and contractors evaluate system integration.

.PDF STANDARD P&ID
.PDF DATASHEET
.PDF GENERAL LAYOUT
.XLSX EQUIPMENT LIST
.PDF QCP & FAT PROTOCOL
.PDF O&M MANUAL
🔒 REQUEST TECHNICAL BUNDLE (.ZIP) SUBMIT PROJECT DETAILS TO UNLOCK
* Note: Detailed .STEP 3D models and manufacturing BOMs are released upon project kickoff / NDA.
// COMPLIANCE STANDARDS

Global Engineering Codes

ISO 9001:2015Quality Management
✓ ACTIVE
NSF/ANSI 61Compliant Materials
✓ COMPLIANT
ASME B31.3Piping Design Code
✓ COMPLIANT
CE / PEDElectrical & Vessels
✓ ACTIVE
/ MODULE-12 / GLOBAL EMPOWERMENT

Risk-Free Overseas Deployment.
Foolproof Remote Commissioning.

Buying heavy machinery across borders shouldn't be a gamble. We replace expensive overseas dispatch fees with rigorous factory prep, color-coded assembly, and 1-on-1 video engineering support.

Color-Coded Assembly

Zero guesswork. All systems arrive with English 3D P&IDs, color-coded piping, and clearly labeled flanges. Your local mechanical contractors simply connect the dots.

Live FAT Verification

We eliminate startup risks at the factory. You witness your system undergo rigorous hydrostatic and performance testing via live stream before it ever boards a ship.

1-on-1 Video Support

Direct access to the English-speaking process engineers who built your plant. Live video troubleshooting ensures your local team never faces downtime alone.

// LIFETIME SUPPORT

Genuine Spares.
72-Hour Global Dispatch.

Protect your investment. We stock 100% original consumables. Air-freight friendly via DHL/FedEx to prevent catastrophic downtimes.

01
SWRO MEMBRANES
DOW / Toray / LG
02
DUPLEX HP PUMPS
Danfoss / FEDCO Spares
03
ERD SPARES
Energy Recovery Devices
04
WATER SENSORS
High-Range Conductivity
/ MODULE-13B / REVENUE EXPANSION

Turnkey Bottling Integration.
From Ocean to Market.

Island resorts and coastal municipalities don't just need water; they need a scalable business model. Seamlessly link your SWRO plant to our automated rinsing, filling, and capping lines.

High Margin

PET Bottle Filling Line

CAPACITY: 330ml — 1.5L

Fully automated 3-in-1 monoblock (Washing/Filling/Capping). Direct pipeline integration from the SWRO permeate tank with UV/Ozone sterilization.

  • ✓ Speed: 2,000 to 24,000 BPH
  • ✓ SS304/SS316L Food-Grade Contact Parts
  • ✓ Integrated Labeling & Shrink Wrapping
Heavy Duty

5-Gallon (19L) Barreled Line

CAPACITY: 100 — 2,000 BPH

Heavy-duty decapping, multi-stage hot alkali washing, and precise filling. The ultimate high-margin ROI generator for remote mining camps and island communities.

  • ✓ Multi-stage Internal/External Brushing
  • ✓ Micro-computer Controlled Filling
  • ✓ Auto-Loader & Palletizing Options
/ MODULE-13C / TECHNICAL FAQ

Hardcore FAQ.
Engineering-Grade Answers.

Our integrated isobaric ERDs typically achieve up to 96% to 98% efficiency in transferring pressure from the high-pressure brine reject directly to the incoming seawater feed. This drastically reduces the load on the main high-pressure pump, lowering overall energy consumption to < 3.0 kWh/m³.
All high-pressure wetted parts are constructed from SS2205 or SS32750 Super Duplex stainless steel. The container and skid frames undergo sandblasting followed by a 3-layer C5-M marine-grade epoxy coating, specifically formulated to withstand severe salt-fog and coastal humidity.
Yes. While a single-pass SWRO can achieve high salt rejection, removing Boron to < 0.5 mg/L often requires a Double-Pass configuration. We utilize high-rejection SWRO membranes in Pass 1, followed by interstage pH adjustment (NaOH dosing to pH ~10) to ionize the Boron, which is then easily rejected by the Pass 2 BWRO membranes.
For open ocean intakes prone to high algae blooms (red tides) and fluctuating turbidity, standard multi-media filtration is insufficient. We strongly mandate the integration of our Pressurized Ultrafiltration (UF) pre-treatment skid. UF provides an absolute physical barrier (0.03 µm), ensuring the feed SDI remains consistently below 3.0, protecting the SWRO membranes from catastrophic bio-fouling.
We utilize a continuous shock-dosing strategy with non-oxidizing biocides (e.g., DBNPA) injected prior to the SWRO stack. Unlike chlorine, which destroys polyamide membranes, non-oxidizing biocides effectively control biological growth without degrading the membrane active layer.
With proper pre-treatment and routine CIP maintenance, Tier-1 SWRO elements typically last 3 to 5 years. Replacement is dictated when normalized permeate flow drops by 15%, or salt passage increases by 15% above the baseline established during initial commissioning.
We provide a comprehensive 12-month mechanical warranty covering all pumps, PLC components, and valves. SWRO membranes carry a 3-year pro-rated performance warranty backed directly by the OEM (DOW/Toray), contingent on maintaining specified inlet boundary conditions.
Yes. All systems are 100% FAT tested (Plug & Play) before dispatch. We offer free remote SCADA/Video commissioning. For mega-projects, our process engineers can be dispatched globally for on-site supervision, SAT (Site Acceptance Test), and local operator training.

Didn't find the answer you're looking for?

Talk to a Process Engineer
// Module-14 / Initiate Protocol

YOUR 50,000m²
ENGINEERING BACKEND.

"You focus on scaling your operations; let us handle the heavy-duty water infrastructure. Submit your parameters below, and our engineering team will architect a custom, zero-civil-work solution guaranteed to perform anywhere on earth."

Kane

Director of Global Projects

Priority Direct Line (Online)
Chat on WhatsApp
Send Direct Email
Connect on LinkedIn

Submit Site Specs

256-Bit Secure

DROP FILE OR CLICK

.PDF / .XLSX / .CSV (Max 10MB)

"Submit your raw water analysis report today. Our senior engineering team will provide a precise P&ID turnkey solution and factory-direct CapEx budget within 48 hours."

```
